Premium Graphite Reinforced Gasket Machine Manufacturer for Efficient Industrial Solutions

Production Machinery for Graphite Reinforced Gaskets

In the demanding world of industrial sealing, Machines for Graphite Reinforced Gaskets represent the cornerstone of precision, efficiency, and reliability. These specialized manufacturing systems are engineered to transform raw materials—high-purity graphite foils and metallic or non-metallic reinforcements—into high-performance sealing components capable of withstanding extreme temperatures, pressures, and corrosive environments. At Kaxite Seals, we understand that the quality of the final gasket is inextricably linked to the sophistication and precision of the machinery used in its production. This detailed guide explores the critical machinery, their technical parameters, and operational excellence that define modern gasket manufacturing.

Core Machinery in the Production Line

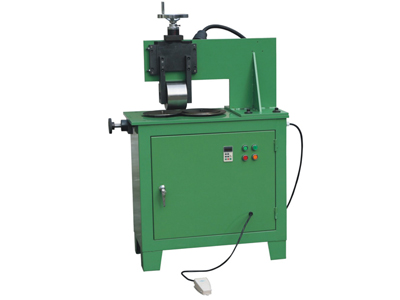

The manufacturing process for graphite reinforced gaskets is a multi-stage operation, each requiring specialized equipment. A typical advanced production line integrates the following key machines:

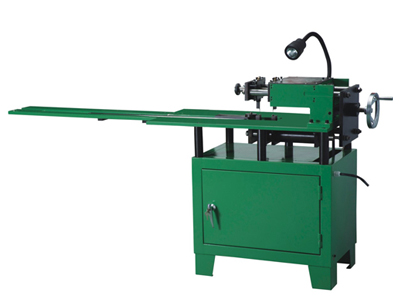

• Precision Slitting & Rewinding Machines: For accurately cutting large rolls of raw graphite foil and reinforcement materials (such as stainless steel, aluminum, or perforated steel) into specified widths with clean, burr-free edges.
• Automated Lamination & Bonding Presses: The heart of the process, where layers of graphite and reinforcement are precisely aligned, pressed, and bonded under controlled heat and pressure to form a homogeneous composite sheet.
• High-Tonnage CNC Punching & Cutting Presses: Equipped with multi-tool capabilities and CNC controls to stamp out gaskets of complex geometries (circles, ovals, custom shapes) from the laminated sheets with exceptional dimensional accuracy and repeatability.
• Laser Cutting Systems: Used for prototyping, low-volume production, or cutting intricate shapes where hard tooling is not feasible. Offers high precision and flexibility.
• Surface Treatment & Coating Units: Apply anti-oxidant coatings, adhesive layers, or other surface treatments to enhance the gasket's performance characteristics.
• Automated Inspection & Testing Stations: Incorporate vision systems, thickness gauges, and density testers for 100% quality control, ensuring every gasket meets specifications.

Detailed Technical Parameters of Key Equipment

Understanding the specifications of these machines is crucial for evaluating their capability. Below are detailed parameters for two central pieces of equipment in a Kaxite Seals production facility.

1. Automated Lamination & Bonding Press

Parameter	Specification	Importance for Gasket Quality
Press Force	50 - 600 Metric Tons (adjustable)	Ensures uniform density and complete bonding between graphite and reinforcement, eliminating delamination risks.
Platen Size	1200 x 1200 mm up to 2000 x 2000 mm	Determines maximum sheet size per production cycle, impacting material yield and efficiency for large gaskets.
Temperature Range	Ambient to 400°C (precise ±2°C control)	Activates bonding agents uniformly and can pre-sinter materials, enhancing the composite's structural integrity.
Pressure Control	Closed-loop servo-hydraulic, programmable multi-stage profiles	Allows for optimized pressing cycles (ramp-up, dwell, release) critical for controlling material flow and final thickness.
Automation Level	Fully automated with robotic sheet handling and PLC control	Ensures consistent cycle times, reduces manual error, and allows for seamless integration into a production line.

2. CNC High-Speed Punching Press

Parameter	Specification	Importance for Gasket Quality
Punching Force	30 - 200 kN	Provides clean shearing of reinforced graphite composite without deforming or fracturing the material.
Stroke Rate	Up to 800 strokes per minute	Determines production throughput for high-volume orders while maintaining precision.
Tooling	Quick-change multi-tool turret (up to 20 stations)	Enables complex gaskets with bolt holes, inner cutouts, and outer profiles to be completed in a single operation.
Positioning Accuracy	±0.05 mm	Critical for maintaining tight tolerances on gasket dimensions and hole patterns, ensuring perfect flange fit.
Feed System	Servo-driven, with vision alignment for material guidance	Maximizes material utilization (nesting efficiency) and ensures precise registration for multi-layer or asymmetrical gaskets.

Frequently Asked Questions (FAQ) on Gasket Production Machinery

Q: What is the most critical factor when selecting a machine for producing graphite reinforced gaskets?

A: The most critical factor is the machine's ability to apply and control uniform pressure and heat across the entire platen area during the lamination process. Inconsistent pressure leads to variations in density and bonding strength across the gasket sheet, resulting in potential leak paths. Machines from Kaxite Seals utilize advanced closed-loop hydraulic systems and evenly heated platens to eliminate this issue, ensuring every part of the composite has identical mechanical properties.

Q: Can the same machinery produce both spiral wound and sheet-based graphite gaskets?

A: No, the core machinery is fundamentally different. Machines for graphite reinforced gaskets discussed here are for producing sheet-based, flat gaskets (like flexible graphite sheets with metal core). Spiral wound gaskets are manufactured on specialized winding machines that coil pre-formed strips of metal and filler (which can be graphite) around a central mandrel. While some auxiliary equipment (like slitters) may be shared, the primary forming processes require dedicated machines.

Q: How does automation in these machines improve the final gasket quality?

A: Automation removes human variability from the production cycle. Programmable Logic Controllers (PLCs) ensure every lamination press cycle has identical pressure profiles, temperature, and dwell time. Robotic handling prevents damage to delicate graphite sheets. Automated inspection systems (e.g., laser scanners, cameras) perform 100% checks for defects like pinholes, thickness deviations, or incorrect cutting, rejecting sub-standard product automatically. This results in unparalleled batch-to-batch consistency and reliability, a hallmark of Kaxite Seals products.

Q: What maintenance is required for high-tonnage gasket bonding presses, and how does it impact uptime?

A: Regular maintenance is vital and includes monitoring hydraulic fluid purity, checking heater cartridge functionality, calibrating pressure transducers, and ensuring platen parallelism. Modern machines designed by Kaxite Seals incorporate predictive maintenance features such as vibration sensors on pumps, temperature monitoring on critical components, and automated lubrication systems. This proactive approach schedules maintenance based on actual machine condition rather than fixed intervals, dramatically reducing unplanned downtime and extending the machinery's operational life.

Q: Is laser cutting a viable alternative to die-based punching for all types of graphite reinforced gaskets?

A: Laser cutting offers excellent flexibility and is perfect for prototypes, complex contours, and low-volume production. However, for high-volume runs of standard shapes, CNC punching presses are significantly faster and more cost-effective per part. Additionally, the heat from the laser can potentially carbonize or affect the edge seal of the graphite material. For high-volume, consistent production of quality gaskets, a combination is often used: punching for high-volume shapes and laser for custom/low-volume work. The choice depends on order volume, part geometry, and required edge quality.

Q: How do machines for graphite reinforced gaskets handle different reinforcement materials (e.g., stainless steel vs. aluminum mesh)?

A: Advanced machinery is designed with adjustable parameters to accommodate different material properties. Key adjustments include:

• Press Force & Profile: Softer materials like aluminum require lower peak pressure to avoid crushing the mesh.
• Tooling Clearance: Punching tools must have precise clearance settings specific to the material thickness and hardness to achieve a clean cut.
• Feeding Tension: Servo-feed systems adjust tension to prevent stretching or distorting lighter gauge reinforcements.

At Kaxite Seals, our machines are programmed with specific recipes for each material combination we use, ensuring optimal processing whether the reinforcement is 316 stainless steel, Monel, or a non-metallic material.

Integrating Machinery for a Complete Production Solution

Beyond individual machines, the true power lies in their integration into a seamless, data-connected production cell. A state-of-the-art line, as operated by Kaxite Seals, features centralized Manufacturing Execution System (MES) software. This system tracks material batches from slitting through to final packing, recording every process parameter (pressure, temperature, cutting speed) for each gasket produced. This creates a full digital traceability record, crucial for industries with stringent quality assurance requirements like oil & gas, chemical processing, and power generation. Investing in such interconnected machines for graphite reinforced gaskets is an investment in guaranteed quality, traceability, and long-term production efficiency.
