Kaxite Seals: Precision-Engineered Gaskets for Demanding Applications
In the world of industrial sealing, reliability is non-negotiable. At Kaxite Seals, we understand that the integrity of your equipment hinges on the quality of the sealing components you use. For over two decades, we have been at the forefront of gaskets manufacturing, developing solutions that withstand extreme pressures, temperatures, and corrosive environments. Our commitment to precision engineering and material science ensures that every Kaxite gasket delivers a perfect seal, minimizing downtime and maximizing operational efficiency for industries worldwide.
A gasket is a critical sealing element placed between two or more mating surfaces to prevent leakage. The performance of a gasket depends on a careful balance of material properties, design, and the specific application requirements. Kaxite Seals specializes in providing this balance, offering a comprehensive portfolio of gasket types tailored for everything from standard plumbing to high-performance aerospace and energy sector applications.
Core Product Parameters and Material Specifications
Selecting the correct gasket requires a deep understanding of technical parameters. Kaxite Seals provides detailed specifications for every product, ensuring you have the data needed for optimal selection.
Key Performance Parameters:
- Pressure Rating: The maximum internal or external pressure the gasket can withstand while maintaining a seal. Kaxite gaskets are rated from vacuum conditions up to 10,000+ PSI for specialized designs.
- Temperature Range: The operational temperature span the gasket material can endure without degradation. Our products cover ranges from cryogenic applications (-200°C / -328°F) to extreme heat (1000°C+ / 1832°F+).
- Chemical Compatibility: Resistance to specific media (acids, alkalis, solvents, oils, gases). We provide comprehensive chemical resistance charts for all our materials.
- Compression Set: The material's ability to recover its original thickness after compression. A low compression set is vital for long-term sealing integrity in bolted flanges.
- Creep Relaxation: The loss of clamping force in a bolted joint over time due to material deformation under load. Kaxite materials are engineered for minimal creep.
Kaxite Seals Standard Gasket Material Comparison Table
| Material Type | Typical Temperature Range | Max Pressure (PSI) | Key Applications & Advantages | Kaxite Product Series |
|---|---|---|---|---|
| Compressed Non-Asbestos (CNA) | -100°F to 750°F (-73°C to 399°C) |
Up to 2,500 | General industrial piping, water, steam, mild chemicals. Excellent cost-performance ratio, good sealability. | KX-CNA Series |
| PTFE (Polytetrafluoroethylene) | -320°F to 500°F (-196°C to 260°C) |
Up to 1,500 | Highly corrosive chemical processing, pharmaceutical, food grade. Superior chemical resistance, low friction. | KX-PTFE Series |
| Graphite (Flexible) | -400°F to 1200°F* (-240°C to 650°C*) *In non-oxidizing atmospheres |
Up to 3,000 | Heat exchangers, exhaust systems, high-temperature flanges. Exceptional thermal conductivity, resilient under thermal cycling. | KX-GRAF Series |
| Metal Jacketed (SS 304/316) | -450°F to 1500°F (-268°C to 816°C) |
Up to 10,000+ | Refineries, petrochemical, high-pressure vessel closures. Extremely robust, handles high pressure/temperature, crush-resistant. | KX-MJ Series |
| Silicone Rubber | -80°F to 450°F (-62°C to 232°C) |
Up to 800 | Automotive, appliance, electrical enclosures. Flexible, good UV/ozone resistance, wide temperature tolerance. | KX-SI Series |
| Spiral Wound (SS304/Graphite Filler) | -450°F to 1500°F (-268°C to 816°C) |
Up to 5,000 | API pipelines, power generation, oil & gas. Excellent resilience and recovery under variable loads and temperatures. | KX-SW Series |
Gaskets FAQ: Expert Answers from Kaxite Seals
Q: How do I choose the right gasket material for my application?
A: The selection process involves analyzing four primary factors: Media (what fluid or gas is being sealed), Temperature (both operational and peak), Pressure (static and dynamic), and Flange Conditions (surface finish, bolt load, type). Always cross-reference the chemical compatibility of the gasket material with your process media using our provided charts. For complex applications, Kaxite Seals offers complimentary engineering support to recommend the optimal material and design.
Q: What is the difference between a static and a dynamic seal, and are gaskets used for both?
A: A static seal is used between surfaces that do not move relative to each other, such as pipe flanges or manway covers. A dynamic seal is used between surfaces in relative motion, like a rotating shaft. Standard gaskets are primarily designed for static sealing applications. For dynamic sealing, components like mechanical seals, lip seals, or O-rings are typically used. Kaxite Seals specializes in static sealing solutions, though some of our flexible graphite and PTFE materials can be used in limited low-movement applications.
Q: Why did my gasket fail, and how can I prevent it?
A: Common failure modes include Blow-out (insufficient bolt load or excessive pressure), Chemical Attack (material incompatible with media), Creep Relaxation/Compression Set (material degrades or flattens permanently under load), and Thermal Degradation (temperature exceeds material limits). Prevention starts with correct material selection per Kaxite guidelines. Ensure proper flange alignment, surface finish, and use controlled bolt tightening sequences (torque patterns) to achieve even load distribution. Regularly inspect gaskets during maintenance cycles.
Q: Can I reuse a gasket after disassembling a connection?
A: As a general rule, gaskets should never be reused. Once compressed, most gasket materials undergo permanent deformation (compression set) and will not rebound to their original shape and thickness. Reusing an old gasket almost guarantees a leak path. Always install a new, unused Kaxite gasket during reassembly to ensure a reliable, leak-free seal. This is a critical best practice in maintenance procedures.

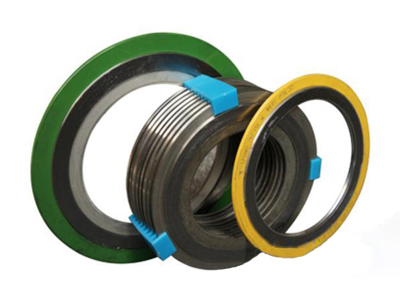

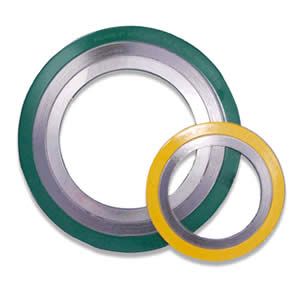

Q: What are the benefits of using spiral wound gaskets over other types?
A: Kaxite Spiral Wound Gaskets (KX-SW Series) offer superior performance in high-pressure, high-temperature, and thermal cycling applications. Their layered metal and filler construction provides excellent resilience—they can absorb fluctuations in internal pressure and temperature without losing sealing force. They are less sensitive to flange surface imperfections compared to solid metal gaskets and offer a more reliable seal than simple soft cut gaskets in demanding service. They are the standard for refinery and pipeline work per ASME B16.20/API 6A specifications.
Q: Do you offer custom-shaped gaskets, or only standard sizes?
A: Kaxite Seals provides both. We maintain a vast inventory of standard ANSI, DIN, JIS, and ASME flange gasket sizes for quick delivery. Crucially, we operate a state-of-the-art fabrication facility capable of producing fully custom gaskets. Whether you need a unique non-standard size, an intricate shape with cutouts, or a specific material laminate not found in catalogs, our engineering team can manufacture it. Simply provide a drawing, sample, or precise specifications.
Advanced Gasket Types and Kaxite Innovations
Beyond standard sheet and cut gaskets, advanced designs address specific engineering challenges. Kaxite Seals invests heavily in R&D to push the boundaries of sealing technology.
- Camprofile Gaskets: Feature a solid metal core with a raised serrated profile, often coated with a soft sealing material like PTFE or graphite. They provide high sealing performance with lower bolt load requirements than flat metal gaskets, ideal for heat exchangers and pressurized vessels.
- Ring Type Joint (RTJ) Gaskets: Machined from solid metal (oval or octagonal cross-section) for ultra-high-pressure sealing in oil & gas wellheads and valves. They create a metal-to-metal seal by deforming into precisely machined grooves.
- Kaxite KOR-LOK™ Series: Our proprietary elastomeric gasket with a engineered polymer core and sealing ribs. It requires significantly lower seating stress than traditional gaskets, reducing flange bending and simplifying installation while achieving a bubble-tight seal for low-pressure applications.
Installation Best Practices for Optimal Gasket Performance
Even the highest-quality Kaxite gasket can fail if installed incorrectly. Follow these guidelines:
- Inspection: Check flanges for scratches, gouges, warpage, or old gasket material. Ensure surface finish is appropriate (typically 125-250 µin Ra for soft gaskets).
- Cleaning: Thoroughly clean both flange faces with a solvent and a non-metallic brush. Surfaces must be clean, dry, and free of oil.
- Alignment: Align flanges properly before inserting the gasket. Do not use the bolts to pull flanges into alignment, as this can damage the gasket.
- Lubrication: Lightly lubricate bolt threads and nuts with an anti-seize compound to ensure accurate and consistent torque.
- Torque Sequence: Tighten bolts in a star-pattern (cross-bolting) sequence. Follow a multi-pass torque procedure (e.g., 30%, 60%, 100% of final torque) to compress the gasket evenly and avoid distortion.
- Re-torquing: For critical applications, consider a re-torque cycle after 24 hours of operation, especially with composite materials, to compensate for initial creep relaxation.
Kaxite Seals stands as your global partner for sealing solutions. Our expertise, rooted in 20 years of solving real-world industrial challenges, is embodied in every product we ship. From standard maintenance parts to mission-critical custom seals, we provide the technical data, support, and unwavering quality necessary to keep your operations running smoothly and safely.
