Ring Joint Gaskets: The Definitive Guide for High-Pressure, High-Temperature Sealing

In the demanding world of industrial sealing, where system integrity under extreme conditions is non-negotiable, few solutions command as much respect as the Ring Joint Gaskets (RJGs). For over two decades, our expertise at Kaxite Seals has been dedicated to engineering and supplying these critical components, which serve as the last line of defense against leaks in some of the planet's most challenging applications. From the towering flare stacks of oil refineries to the high-pressure manifolds on subsea pipelines, the reliability of an RJG can mean the difference between operational efficiency and catastrophic failure. This guide delves into the technical intricacies, material science, and application knowledge that define premium ring joint gaskets, showcasing why Kaxite Seals is the trusted partner for global engineering projects.

Understanding Ring Joint Gaskets: Design and Function

A Ring Joint Gasket is a solid, metallic sealing ring designed to be seated in a machined groove in flanges. When the flanges are bolted together, the gasket is compressed, creating a tight, pressure-energized seal. Unlike softer gaskets, RJGs deform plastically into the flange grooves, creating a highly effective metal-to-metal seal ideal for:

• Extremely high pressure (often exceeding 10,000 psi/689 bar)
• Extreme temperatures, both cryogenic and elevated
• Corrosive and toxic media where leakage is unacceptable
• Applications with high thermal cycling or vibration

The effectiveness of the seal depends on the precision of four elements: the gasket's geometry, its material, the corresponding flange groove (RTJ groove), and the correct installation procedure. Kaxite Seals maintains absolute control over the first two, providing gaskets that meet and exceed international standards such as ASME B16.20, API 6A, and ISO 10423.

Kaxite Seals Ring Joint Gasket: Detailed Product Specifications

Our manufacturing process ensures every Kaxite Seals RJG delivers consistent performance. Below are the critical parameters that define our product range.

Standard Types and Profiles

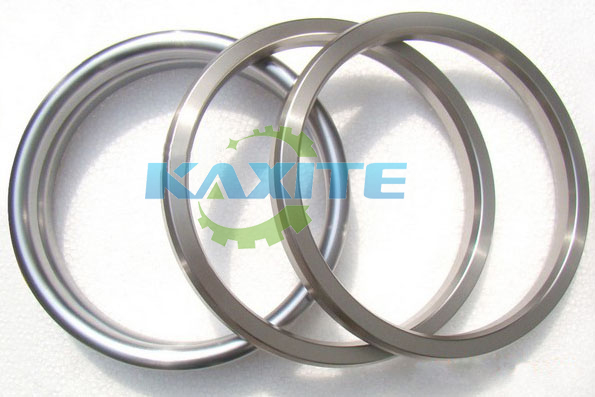

We manufacture the two principal profiles recognized worldwide:

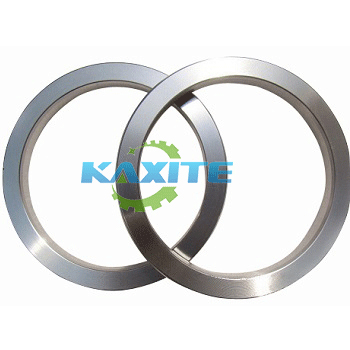

• R-Style (Octagonal): The most common type, providing an excellent seal with lower bolt load requirements. It has flat sides and is easier to install and remove.
• RX-Style (Octagonal with Pressure Balancing): A self-energizing variant designed for higher pressures. Its modified shape allows it to flex slightly, improving sealing under pressure fluctuations and thermal cycling.

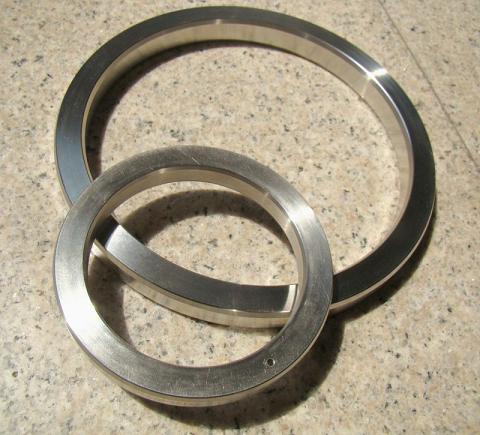

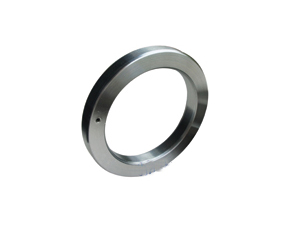

• BX-Style (Octagonal for API 6A/6BX): Used specifically for wellhead and christmas tree equipment per API 6A standards. These are designed for the most severe pressure services.

Material Grades and Properties

The choice of material is paramount for corrosion resistance, temperature capability, and mechanical strength. Kaxite Seals offers a comprehensive range.

Size and Pressure Class Specifications

Kaxite Seals RJGs are available for all standard flange sizes and pressure classes, including ANSI classes 150 through 2500 and API pressures up to 20,000 psi and beyond. Critical dimensions include:

• Nominal Pipe Size (NPS): From 1/2" to 24" and larger.
• Ring Number: Corresponds to specific flange groove dimensions (e.g., R24, RX-57, BX-154).
• Outside Diameter (O.D.) & Width: Precisely machined to ensure perfect fit into the flange groove.
• Identification: All Kaxite Seals gaskets are permanently marked with material grade, ring number, and our brand for full traceability.

Frequently Asked Questions (FAQ) About Ring Joint Gaskets

Q: Can a Ring Joint Gasket be reused?

A: It is generally not recommended and often prohibited by engineering standards. During installation, the gasket undergoes plastic deformation as it cold-flows into the imperfections of the flange grooves, creating the seal. Upon disassembly, this deformed shape is compromised. Reusing an old gasket will likely result in a leak path. Kaxite Seals always advises using a new, certified gasket for every make-up to ensure system integrity and safety.

Q: How do I select the correct material grade for my application?

A: Material selection is a critical engineering decision based on three primary factors: the fluid media (its corrosiveness), the operating temperature, and the required pressure rating. A corrosion specialist or materials engineer should always be consulted. As a rule of thumb, Soft Iron is used for non-corrosive services like hydrocarbon gases, 316 SS is standard for many chemical and offshore applications, and high-nickel alloys like Inconel are chosen for extreme temperatures and corrosive environments. Kaxite Seals technical team can provide detailed material selection guidance based on your specific service conditions.

Q: What is the difference between R, RX, and BX style gaskets? Can they be interchanged?

A: They are not interchangeable. The grooves in the flanges are machined specifically for one style.
R-style gaskets fit into oval or octagonal grooves in standard ANSI/ASME flanges.
RX-style gaskets are dimensionally similar to R-style but are engineered with a different cross-section that provides a degree of self-energization. They require specific RX-grooved flanges.
BX-style gaskets are for API 6BX flanges used in wellhead equipment. They are designed for much higher pressures and have a different sealing mechanism. Using the wrong style will result in an improper fit and a guaranteed leak.

Q: What are the best practices for installing a Ring Joint Gasket?

A: Proper installation is crucial: 1. Inspection: Thoroughly clean the flange grooves and gasket seating areas. Inspect for scratches, pitting, or corrosion. Check the new Kaxite Seals gasket for any transit damage. 2. Lubrication: Apply a thin, even film of suitable high-pressure anti-seize or lubricant to the gasket and the flange groove. This aids in compression and future disassembly. 3. Alignment: Place the gasket carefully into the groove without twisting or dropping it. Ensure it seats evenly. 4. Bolt Torquing: Follow a cross-pattern bolting procedure (star pattern) in multiple incremental steps to the specified torque value. This ensures even compression of the gasket into the groove. Always refer to the flange manufacturer's or engineering specification for the correct bolt load.

Q: Why do some Ring Joint Gaskets have a plated coating?

A: Coatings such as silver, nickel, or copper are sometimes applied. Their primary purpose is to act as a lubricant/filler during the initial make-up, helping the gasket deform smoothly into the flange grooves to create a perfect seal. Silver plating is common for high-temperature services as it doesn't gall or oxidize easily. The need for plating depends on the application specifics and material combination. Kaxite Seals can provide coated gaskets as required by your specifications.

Q: How does Kaxite Seals ensure the quality of its Ring Joint Gaskets?

A: At Kaxite Seals, quality is engineered into every step. We start with certified raw material from approved mills. Our CNC machining centers guarantee dimensional accuracy to within thousandths of an inch. Every batch undergoes rigorous inspection, including dimensional checks, hardness testing, and material verification (via PMI - Positive Material Identification). Full traceability documentation (Material Test Certificates) is provided with every shipment, ensuring compliance with the most stringent project and safety standards like NACE MR0175/ISO 15156 for sour service.

Applications of Kaxite Seals Ring Joint Gaskets

The robustness of our RJGs makes them indispensable across heavy industry. Key sectors relying on Kaxite Seals include:

• Oil & Gas Production & Refining: Wellheads, christmas trees, manifolds, blowout preventers (BOPs), refinery process piping, and flare systems.
• Petrochemical & Chemical Processing: High-pressure reactors, heat exchangers, and piping handling corrosive, toxic, or volatile compounds.
• Power Generation: Steam lines, turbine connections, and boiler fittings in both conventional and nuclear power plants.
• Subsea Engineering: Underwater pipelines, connectors, and production systems where reliability is paramount and access for repair is extremely costly.
• Aerospace & Defense: High-pressure fuel and hydraulic systems in rockets, aircraft, and ground support equipment.
