Custom OEM Solutions for Braiding Packing from a Leading Chinese Manufacturer

Expert-Grade Machines For Braiding Packing: Engineering Precision for Superior Seal Performance

In the demanding world of industrial sealing, the quality of braided packing is paramount. This critical component, used to prevent leakage in pumps, valves, and rotating equipment, relies entirely on the precision and consistency of its manufacturing process. At Kaxite Seals, we understand that superior packing begins with superior machinery. Our engineered Machines For Braiding Packing represent the culmination of decades of expertise, designed to produce high-density, uniform, and reliable braided seals that meet the toughest operational standards. Unlike standard equipment, Kaxite machinery integrates advanced control systems, robust construction, and adaptable designs to handle a vast array of materials—from traditional flax and aramid to advanced PTFE and carbon fiber—ensuring every braid meets exact specifications for density, cross-section, and tensile strength.

Core Technical Specifications & Capabilities

Kaxite Seals' braiding machines are built for industrial endurance and precision. Below are the key parameters that define our product line's capability and versatility.

Primary Machine Models & Configurations

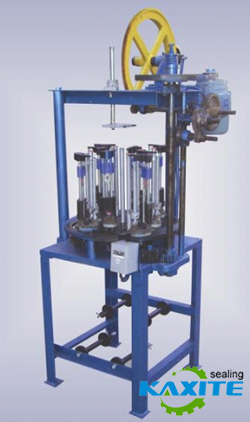

• KX-BM Series (Horizontal Maypole Braiders): Our flagship series for high-speed, continuous production of square, rectangular, and round braids. Ideal for bulk manufacturing of standard packing styles.

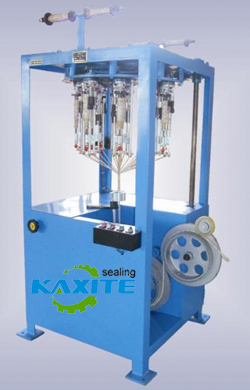

• KX-VB Series (Vertical Braiders): Engineered for specialized, heavy-duty braids and larger cross-sections. Provides superior control over braid density and material tension.

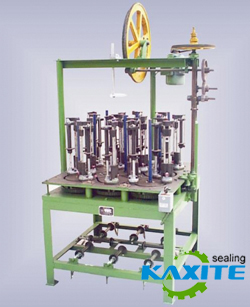

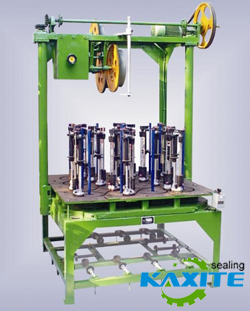

• KX-HC Series (High-Carrier Machines): Featuring 24, 36, 48, or even 72 carriers for producing exceptionally dense, complex braids required for high-pressure sealing applications.
• KX-CNC Series (Computer Numerical Control): Fully automated machines with programmable logic controllers (PLCs) for precise control over speed, tension, pitch, and pattern. Enables quick changeovers and repeatable precision.

Advanced Features of Kaxite Braiding Machinery

Beyond standard specifications, Kaxite Seals integrates proprietary features that set our machines apart in terms of output quality, operational efficiency, and longevity.

• Automatic Lubrication System: A centralized oil circulation system ensures all moving parts, especially horn gears and carriers, are continuously lubricated, reducing maintenance downtime and part wear.
• Digital Tension Monitoring: Real-time sensors on each carrier or group of carriers provide feedback to the PLC, allowing for instantaneous adjustments to maintain uniform yarn tension—a critical factor for braid consistency.
• Quick-Change Carrier System: Our patented carrier design allows operators to change bobbins or switch material types in minutes, significantly enhancing production flexibility for custom orders.
• Integrated Diagnostic Alerts: The HMI system proactively monitors for issues like yarn breakage, bobbin run-out, or mechanical faults, alerting operators with specific error codes to expedite troubleshooting.
• Modular Design Philosophy: Core components are designed as modules. This allows for future upgrades (e.g., adding carriers, integrating new tensioners) and simplifies repair by replacing entire modules rather than intricate disassembly.

Frequently Asked Questions (FAQ) About Machines For Braiding Packing

What is the primary advantage of using a high-carrier (e.g., 48 or 72 carrier) braiding machine?

The primary advantage is the ability to produce packing with a much higher braid density and yarn count per cross-sectional area. This results in a finished packing that is denser, less porous, and possesses superior mechanical strength and extrusion resistance. It is essential for sealing applications involving very high pressure, aggressive media, or where low leakage rates are legally or operationally mandated. Kaxite Seals' high-carrier machines are engineered to manage the complexity of these patterns without compromising speed or tension control.

How does material choice impact the selection of a braiding machine?

Different materials have vastly different physical properties. Abrasive materials like carbon fiber require machine components with hardened surfaces and specialized guides to prevent wear. Slippery materials like PTFE tape need precise, consistent tension control to prevent unraveling. Elastic materials require controlled stretch management. Kaxite machines are designed with this variability in mind, offering customizable tension systems, bobbin friction settings, and guide materials (ceramic, chrome-plated) to optimally handle the specific yarn or tape being processed.

Can one machine produce both square and round braided packing?

Yes, many modern Machines For Braiding Packing, including key models from Kaxite Seals, are designed for this versatility. The transition typically involves changing the forming die or guide plate at the convergence point of the carriers. Some advanced CNC models can even automate this change. However, for dedicated, high-volume production of one specific shape, machines may be optimized for that profile to achieve maximum speed and consistency.

What maintenance is required for a braiding machine to ensure consistent output?

Regular maintenance is crucial. Daily tasks include cleaning fly and debris, checking for yarn residue, and verifying tension settings. Weekly maintenance involves inspecting carriers for smooth operation, checking gear and track wear, and verifying lubrication levels. Monthly or quarterly schedules should include a more thorough inspection of all moving parts, recalibration of tension sensors, and checks on electrical connections. Kaxite Seals provides comprehensive maintenance schedules and training with each machine to maximize uptime and product consistency.

How important is the take-up system in the braiding process?

Extremely important. An inconsistent or jerky take-up system can introduce variations in braid tension, leading to sections that are too loose or too tight. This creates weak points and dimensional inconsistency in the final packing. Kaxite's motorized, digitally controlled take-up systems provide a smooth, constant pull on the braid as it forms. The tension is programmable and can be adjusted based on material and braid density, ensuring the finished product is wound uniformly without deformation, ready for spooling or cutting into rings.

What training and support does Kaxite Seals provide with its machinery?

Kaxite Seals believes in partnership. Our package includes on-site installation and commissioning by a technical expert. We provide hands-on operational training for your team covering machine setup, daily operation, basic troubleshooting, and safety protocols. Furthermore, we supply detailed technical manuals, wiring diagrams, and parts catalogs. Customers receive access to our dedicated technical support line and online portal with video tutorials and a knowledge base. Optional annual service contracts are available for preventive maintenance.

Optimizing Production with Kaxite Seals Technology

The true measure of a Machines For Braiding Packing is its impact on the final product and production efficiency. Kaxite Seals' machinery is engineered to deliver quantifiable benefits:

• Reduced Material Waste: Precise tension control and monitoring minimize yarn breakage and the production of off-spec braid, directly improving material yield.
• Enhanced Product Consistency: Automated controls ensure that every meter of packing produced has identical density, diameter, and braid angle, leading to predictable and reliable sealing performance for your end-users.
• Increased Production Flexibility: The ability to quickly switch between materials, braid patterns, and sizes allows manufacturers to respond swiftly to custom orders and small-batch production runs without sacrificing efficiency.
• Lower Total Cost of Ownership: While representing a premium investment, the durability, reduced downtime, and lower maintenance requirements of Kaxite machinery translate to a superior return on investment over the machine's operational lifespan.
