High-quality manufacturing services for spiral wound gaskets from a reliable supplier in China

In the complex world of industrial sealing, precision and reliability are paramount. At the heart of manufacturing high-performance spiral wound gaskets lie specialized pieces of equipment designed for exacting standards. Machines for spiral wound gaskets are not just tools; they are sophisticated systems that transform raw materials like V-shaped metal strips and filler materials into critical sealing components used in flanged connections across oil & gas, chemical, power generation, and petrochemical industries. The quality of the final gasket—its dimensional accuracy, density, consistency, and resilience—is directly determined by the capability and precision of these machines. For engineers, procurement specialists, and plant managers, understanding the technology behind these machines is key to ensuring supply chain integrity and operational safety.

Kaxite Seals, with decades of engineering expertise, not only supplies premium spiral wound gaskets but also champions the manufacturing excellence behind them. Our deep knowledge of the machinery that produces these seals informs every product we deliver, ensuring they meet the most stringent international standards such as ASME B16.20, API 601, and DIN EN 1514.

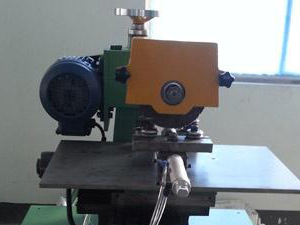

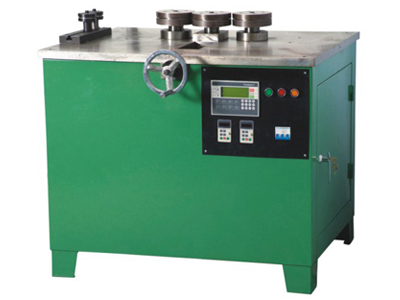

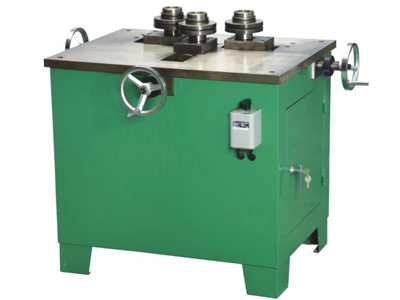

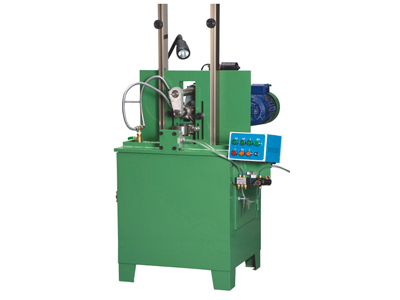

Core Components of a Modern Spiral Wound Gasket Machine

A state-of-the-art machine for producing spiral wound gaskets is an integrated system comprising several critical units working in harmony. Understanding these components reveals the engineering sophistication involved.

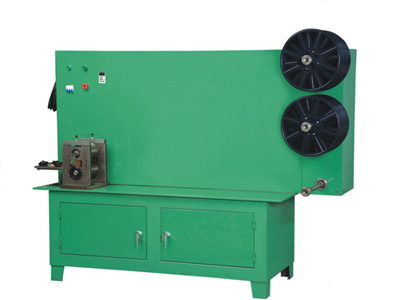

• Uncoiling and Feeding System: This subsystem precisely controls the payout of the pre-formed V-shaped metal strip (commonly from materials like 304/316 stainless steel, Inconel, or Titanium) and the filler material (often graphite, PTFE, or ceramic paper). Tension control is vital to prevent stretching or buckling.
• Forming and Winding Head: The heart of the machine. Here, the metal strip and filler are guided together and wound under controlled tension around a central mandrel. The forming tools shape the strip into the precise "V" profile as it is wound, creating the characteristic spiral layers.
• Mandrel Assembly: A set of interchangeable, precision-machined mandrels defines the inner diameter (ID) of the gasket. Quick-change systems are essential for efficient production of various sizes.
• Computer Numerical Control (CNC) System: The brain of the operation. A modern CNC controls winding speed, pitch (the spacing between metal windings), tension, and the final outer diameter (OD). It allows for programming complex profiles and ensures batch-to-batch consistency.
• Guiding and Compression Rollers: These ensure the winding remains concentric and applies consistent radial pressure to achieve the designed density and thickness of the gasket.
• Cutting and Finishing Mechanism: Once the programmed outer diameter is reached, an integrated cutting tool (often a carbide blade or laser) severs the wound material cleanly. Some systems include automated tagging or stamping stations.

Critical Technical Parameters and Specifications

When evaluating or operating a spiral wound gasket machine, several key parameters define its capability and output quality. The following table outlines these essential specifications:

Advanced Features in Modern Manufacturing Machines

Leading manufacturers like those whose principles Kaxite Seals adheres to incorporate advanced features to enhance quality and productivity:

• Automatic Filler Alignment: Ensures the filler material is perfectly centered within the "V" of the metal strip throughout the winding process, crucial for consistent sealing performance.
• Real-Time Thickness Monitoring: Laser or ultrasonic sensors continuously measure the gasket thickness during winding, allowing for micro-adjustments to maintain tolerances within ±0.05 mm.
• In-Process Vision Systems: Cameras inspect the winding for defects like filler gaps, metal strip flaws, or irregular pitch, rejecting sub-standard production in real-time.
• Tool-less Mandrel Change Systems: Reduce changeover time from hours to minutes, supporting Just-In-Time (JIT) manufacturing and small-batch customization.
• Energy-Efficient Drives: Servo motors that regenerate power during deceleration, significantly reducing electricity consumption.

FAQ: Common Questions About Machines for Spiral Wound Gaskets

Q: What is the most important factor in a machine that determines the quality of the finished spiral wound gasket?

A: While all components are integral, the precision and stability of the tension control system are arguably the most critical. Consistent, adjustable tension applied to both the metal strip and filler material throughout the winding cycle is what creates a gasket with uniform density. Non-uniform density leads to uneven compression when the flange is bolted, creating potential leak paths. Modern machines use feedback-controlled servo systems to maintain tension within a 1% tolerance band.

Q: Can one machine produce gaskets for all pressure classes (e.g., 150lb, 300lb, 600lb, 900lb)?

A: Yes, a versatile, well-designed machine can produce gaskets for all standard pressure classes. The key adjustments are in the programming parameters: the number of winding layers (which affects thickness), the winding pitch, and the tension. Higher pressure-class gaskets (like 900lb or 1500lb) typically require more windings, a tighter pitch, and sometimes a wider metal strip to create a denser, more robust cross-section. The machine's CNC must be capable of storing and accurately executing these distinct programs.

Q: How does the machine handle different filler materials like graphite, PTFE, or mica?

A: Different fillers have vastly different physical properties. Graphite is friable, PTFE is soft and can stretch, mica is more rigid. A high-quality machine will have separate, independently adjustable tension systems for the filler and the metal strip. The filler tension must be precisely calibrated for each material type to guide it smoothly without tearing, stretching, or crushing. Quick-change guides and tension presets for common filler materials are a sign of a professional-grade machine.

Q: What maintenance is required for these machines to ensure long-term accuracy?

A: Regular preventive maintenance is essential. Daily tasks include cleaning windings heads and guides to prevent material dust buildup. Weekly checks involve verifying tension calibrations and lubricating guide rails. Monthly/quarterly maintenance should include inspecting and, if necessary, replacing forming rollers and cutting blades for wear, checking the alignment of all guiding components, and backing up CNC programs. Annual servicing by a qualified technician should involve a full geometric alignment check of the mandrel and winding axis.

Q: Are modern machines capable of producing non-standard or custom gasket profiles?

A> Absolutely. Advanced CNC-controlled machines excel at customization. Beyond standard round gaskets, they can be programmed to produce oval, rectangular, or free-form shapes for heat exchangers or custom vessels. They can also create gaskets with varying densities in different sections (e.g., a denser winding near the inner diameter for higher pressure containment) or integrate multiple filler materials in a single gasket. This flexibility is a cornerstone of the capability offered by specialists like Kaxite Seals.

Q: How do machine capabilities relate to certifications like API 601 or PED/ASME?

A> Certification bodies audit the entire manufacturing process. The machine's capability to produce consistent, traceable output is central to certification. The CNC system must log production data (batch ID, material heat numbers, winding parameters) for each gasket. The machine's inherent accuracy ensures that every gasket produced adheres to the dimensional and density specifications outlined in the certified Quality Control plan. Without a precise and reliable machine, maintaining consistent certification is virtually impossible.

Material Considerations and Machine Compatibility

The choice of metal and filler material imposes specific requirements on the machine:

• Exotic Alloys (e.g., Inconel 625, Hastelloy): These harder, stronger metals require machine components made from hardened tool steel or carbide to resist wear on forming tools. Winding tension parameters also differ from standard stainless steel.
• Soft Fillers (PTFE, Expanded Graphite): Require delicate tension control and non-abrasive guide surfaces to prevent deformation or incorporation of shredded particles into the windings.
• Abrasive Fillers (Ceramic, Mica): Accelerate wear on guides and rollers. Machines designed for these materials often feature hardened or ceramic-coated contact surfaces.

Kaxite Seals' partnership with advanced manufacturing facilities ensures that the machinery used is always matched to the material specifications, guaranteeing that the intrinsic properties of high-grade alloys and fillers are preserved in the final gasket product.

The Role of Automation and Industry 4.0

The latest evolution in machines for spiral wound gaskets involves integration into smarter factories. This includes:

• Automated Material Handling: Robotic arms that load metal coils and filler spools, and unload finished gaskets onto pallets or conveyors.
• Centralized Process Monitoring: Machine data (OEE, tension logs, error codes) is fed to a Manufacturing Execution System (MES) for real-time production analysis and predictive maintenance scheduling.
• Digital Twin Technology: Simulating winding processes in software to optimize parameters for new gasket designs before physical production, reducing setup time and material waste.

This digital integration ensures not only higher productivity but also creates an unbroken chain of traceability from raw material to shipped product, a value deeply embedded in the Kaxite Seals supply chain philosophy.
