Reliable Die-formed Graphite Ring Manufacturer for Industrial Applications

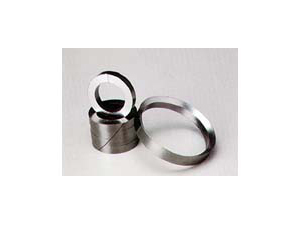

What is a Die-formed Graphite Ring?

A die-formed graphite ring is a premium sealing solution engineered for demanding applications where reliability under extreme conditions is paramount. Unlike traditional braided or spiral-wound packing, die-forming is a manufacturing process where high-purity, flexible graphite foil is precisely stamped and molded under high pressure into a specific ring shape using precision dies. This process creates a homogeneous seal with no inherent voids or weak points, offering exceptional consistency, dimensional accuracy, and superior sealing performance directly out of the box. At Kaxite Seals, we specialize in producing high-grade die-formed graphite rings that set the benchmark for leak prevention and operational longevity in industries worldwide.

Key Features and Advantages of Kaxite Seals Die-formed Graphite Rings

The superiority of our die-formed graphite rings lies in their unique construction and material properties. Here are the core features that distinguish them:

• Homogeneous Structure: The die-forming process eliminates layered construction, creating a uniform, void-free seal that resists leakage paths.
• Excellent Thermal Conductivity: Graphite efficiently dissipates heat, preventing thermal build-up that can degrade other sealing materials.
• Broad Temperature Range: Capable of performing from cryogenic temperatures up to 3000°F (1650°C) in non-oxidizing atmospheres, and up to 750°F (400°C) in oxidizing environments.
• Chemical Inertness: Resistant to a vast array of chemicals, acids, alkalis, and solvents, ensuring compatibility in aggressive media.
• Self-Lubricating: The natural lubricity of graphite minimizes friction and wear on rotating or reciprocating shafts, reducing power consumption.
• Flexibility & Conformability: Even as a solid ring, the flexible graphite material conforms well to flange faces or gland surfaces, compensating for minor imperfections.
• No Aging or Hardening: Unlike elastomers, graphite does not harden or become brittle over time, ensuring long-term sealing integrity.
• Precision Dimensions: Manufactured to exacting tolerances, ensuring a perfect fit and easy installation every time.

Technical Specifications & Product Parameters

Kaxite Seals die-formed graphite rings are available in a wide range of sizes, densities, and can be enhanced with various treatments to meet specific application needs. The tables below detail our standard specifications.

Standard Material Grades & Properties

Standard Size Range & Tolerances

Note: Custom sizes and shapes outside these ranges can be manufactured upon request. Please consult with Kaxite Seals engineering.

Common Applications for Die-formed Graphite Rings

The versatility of die-formed graphite rings makes them suitable for a multitude of sealing challenges across critical industries:

• Oil & Gas: Heat exchanger gaskets, valve stem seals, compressor rod packing, flanges in refining and petrochemical processes.
• Power Generation: Seals for turbine bypass systems, boiler manways, soot blower doors, and high-temperature flanges in fossil fuel and nuclear plants.
• Chemical & Pharmaceutical: Reactor flanges, agitator seals, pump glands, and connections handling corrosive or ultra-pure fluids.
• Aerospace: High-temperature exhaust and engine test stand seals.
• Industrial Manufacturing: Furnace doors, autoclaves, hydraulic accumulators, and any joint requiring a reliable, high-temperature seal.

Frequently Asked Questions (FAQ) About Die-formed Graphite Rings

Q: How does a die-formed graphite ring differ from a spiral-wound gasket with graphite filler?
A: They are fundamentally different. A spiral-wound gasket is a metallic structure with graphite wound into it, creating potential leakage paths through the windings. A die-formed graphite ring is a solid, homogeneous ring of pure flexible graphite with no internal gaps. It provides more uniform seating stress and is often more leak-tight, especially in low bolt-load applications.

Q: Can die-formed graphite rings be used on rotating equipment?
A: Yes, they are excellent for rotary pump shaft seals and mixer seals, especially when used in a stacked ring configuration within a gland. Their self-lubricating nature reduces friction and heat generation. For high-speed rotation, specific gland design considerations (like flush plans) are recommended.

Q: Are these rings resistant to thermal cycling and shock?
A: Absolutely. Flexible graphite has a very low coefficient of thermal expansion, meaning it expands and contracts very little with temperature changes. This property, combined with its flexibility, allows Kaxite Seals die-formed rings to maintain a tight seal through rapid and extreme thermal cycles where other materials might fail.

Q: Do I need to apply a sealant or lubricant during installation?
A: No, die-formed graphite rings from Kaxite Seals should be installed clean and dry. The graphite itself provides the necessary lubrication. Applying oils or greases can attract dust, interfere with the seal's conformability, and is unnecessary.

Q: How do I select the correct density for my application?
A: Density correlates with pressure resistance and recovery. For standard flanging and low to medium pressures (up to ~1500 psi), our KX-DFG-S grade (1.1-1.3 g/cm³) is typically sufficient. For higher pressures, highly abrasive environments, or where maximum sealing force is needed, specify the KX-DFG-HD high-density grade. Our technical team can assist with selection.

Q: Can die-formed rings be used in services with strong oxidizers or high oxygen content?
A: Care must be taken. Pure graphite can oxidize at elevated temperatures in the presence of oxygen. For such applications, Kaxite Seals offers impregnated grades (KX-DFG-I) containing inorganic inhibitors that significantly extend the upper temperature limit in oxidizing environments. Always consult the specific temperature limits for oxidizing service.

Q: How should die-formed graphite rings be stored before use?
A: Store them in their original packaging in a cool, dry environment away from direct sunlight, moisture, and dust. Avoid stacking heavy objects on top of them to prevent deformation. They have an indefinite shelf life if stored properly.

Q: Are custom shapes or profiles available beyond standard rings?
A: Yes. The die-forming process at Kaxite Seals is highly adaptable. We can produce oval rings, rectangles, odd shapes, and complex cross-sections (like T-shapes or grooved profiles) to fit specialized housings or retrofit existing equipment. Submit your drawing for a quotation.
