Custom Non-asbestos Gaskets Manufacturer for Bulk and OEM Solutions

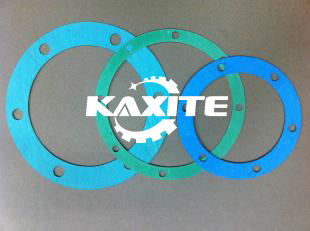

What Are Non-asbestos Gaskets and Why Are They Crucial?

In industrial sealing, the shift from traditional asbestos-based materials to safer, high-performance alternatives represents a significant advancement in both safety and engineering. Non-asbestos gaskets are engineered sealing materials designed to replace asbestos gaskets without compromising on performance. They are fabricated from a blend of synthetic fibers (such as aramid, glass, carbon, or cellulose), elastomeric binders, and fillers, compressed under high pressure and temperature to form a uniform, resilient sheet. These gaskets are indispensable for creating leak-proof seals in piping systems, pumps, valves, and flanges across industries like oil & gas, chemical processing, power generation, and marine applications. The primary driver for their adoption is the severe health hazards associated with asbestos, including lung cancer and mesothelioma, leading to strict global regulations like the U.S. EPA's Asbestos Ban and Phase-Out Rule and the EU's REACH restrictions. Beyond safety, modern non-asbestos materials from leading manufacturers like Kaxite Seals offer superior chemical resistance, temperature tolerance, and compression recovery, ensuring long-term reliability and compliance in demanding environments.

Key Product Parameters and Specifications of Kaxite Seals Non-asbestos Gaskets

At Kaxite Seals, we engineer our non-asbestos gasket materials to meet precise international standards and customer-specific challenges. Our product range is characterized by rigorous quality control and advanced formulation. Below are the core parameters that define our offerings.

Material Composition & Grades

We offer several grades, each optimized for different service conditions:

• KAX-NA100 (Standard Grade): Composed of aramid fibers and NBR binder. Ideal for general-purpose applications with water, steam, oils, and mild chemicals.
• KAX-NA200 (High-Temperature Grade): Features a blend of glass and carbon fibers with an SBR binder. Designed for elevated temperature services and higher pressure flanges.
• KAX-NA300 (Chemical-Resistant Grade): Incorporates special synthetic fibers and FKM (Viton) binder for exceptional resistance to aggressive acids, alkalis, and solvents.
• KAX-NA400 (Food & Pharma Grade): Made with high-purity cellulose fibers and FDA-approved elastomers, suitable for sanitary applications.

Technical Performance Data Table

Available Forms and Customization

• Sheets: Standard sheet sizes up to 1500mm x 1500mm, with thicknesses from 0.5mm to 6.0mm.
• Pre-cut Gaskets: CNC-cut, die-cut, or laser-cut to exact flange dimensions (ASME B16.5, B16.47, DIN, JIS).
• Spiral Wound Gasket Filler: Our KAX-NA200 material is widely used as the filler in spiral wound gaskets for high-integrity joints.
• Color Coding: Standard grade is typically gray, high-temp is red, chemical-resistant is green, and food-grade is white for easy identification.

Frequently Asked Questions (FAQ) About Non-asbestos Gaskets

Q: Are non-asbestos gaskets as durable and effective as traditional asbestos gaskets?

A: Yes, modern high-quality non-asbestos gaskets are not only as effective but often superior. While asbestos had inherent heat resistance, its health risks were unacceptable. Today's advanced materials, like those developed by Kaxite Seals, combine synthetic fibers and polymers to deliver excellent thermal stability, sealability, and creep resistance. They are engineered to withstand specific pressure, temperature, and chemical conditions, often providing a more predictable and reliable seal with better recovery properties, leading to longer service life and reduced maintenance.

Q: How do I select the correct non-asbestos gasket grade for my application?

A: Selection depends on three primary factors: the fluid media (chemical compatibility), operating temperature, and pressure. First, identify the most aggressive chemical in your process and consult the chemical resistance chart for the gasket material. Second, ensure the material's continuous and peak temperature ratings exceed your operating range. Third, verify the maximum pressure rating. For standard water, oil, or steam lines below 200°C, a general-purpose grade like Kaxite's KAX-NA100 is suitable. For high-temperature exhausts or heat exchangers, choose KAX-NA200. For aggressive acids or solvents, KAX-NA300 is necessary. Always refer to the manufacturer's datasheets and consider factors like flange surface finish and bolt load.

Q: What are the key installation precautions for non-asbestos gaskets?

A: Proper installation is critical for performance. Ensure the flange faces are clean, undamaged, and aligned. The gasket must be centered on the flange. Use a calibrated torque wrench to tighten bolts in a cross-pattern sequence (star pattern) to the recommended torque value provided by the gasket manufacturer or flange standard. This ensures even compression and prevents distortion. Avoid over-compression, which can cause the gasket to split or extrude, and under-compression, which leads to leakage. Never reuse a gasket once it has been compressed. For specific guidance, Kaxite Seals provides detailed installation manuals with each product batch.

Q: Do non-asbestos gaskets require different storage conditions?

A: While robust, non-asbestos gaskets should be stored properly to maintain their properties. Store sheets or pre-cut gaskets in a cool, dry place away from direct sunlight, ozone sources (like electric motors), and extreme temperatures. Ideally, keep them in their original packaging until ready for use. Stack sheets flat to prevent bending or warping. They should also be kept away from oils, solvents, and corrosive fumes. Under recommended storage conditions (typically below 40°C and 70% relative humidity), Kaxite Seals gaskets have a shelf life of over 5 years from the date of manufacture.

Q: How can I verify the quality and authenticity of the non-asbestos gaskets I purchase?

A: Reputable manufacturers like Kaxite Seals provide full traceability and certification. Look for a mill test certificate (MTC) or certificate of conformity (CoC) with the shipment, which details the batch number, physical properties test results, and confirms compliance with standards like ASTM F104, API 601, or DIN 3754. The material itself often has a consistent color and texture, and may feature a permanent brand imprint. Be wary of materials that are unusually cheap, have inconsistent density, or lack proper documentation, as they may be inferior substitutes that could fail prematurely.

Q: Can Kaxite Seals provide custom-formulated non-asbestos materials for a unique application?

A: Absolutely. Kaxite Seals maintains a dedicated R&D laboratory for material development. If your application involves a unique combination of temperature, pressure, and a specific corrosive medium not fully addressed by our standard grades, our engineering team can work with you to develop a custom formulation. This process involves analyzing your requirements, prototyping, and rigorous testing (sealability, compression, chemical immersion) to ensure the material performs reliably in your specific operating environment before full-scale production.
