Corrugated Gaskets Manufacturer for Efficient Industrial Sealing Solutions

Precision Sealing Solutions: A Deep Dive into Corrugated Gaskets

In the demanding world of industrial sealing, where pressure, temperature, and chemical resistance are non-negotiable, one component consistently proves its mettle: the Corrugated Gaskets. At Kaxite Seals, with decades of engineering expertise, we understand that a gasket is not merely a spare part; it's a critical safety and performance component. Corrugated metal gaskets represent the pinnacle of sealing technology for flanged connections in extreme service conditions. Their unique design offers a combination of robustness and resilience unmatched by flat gaskets, making them indispensable in industries ranging from oil and gas and petrochemicals to power generation and aerospace.

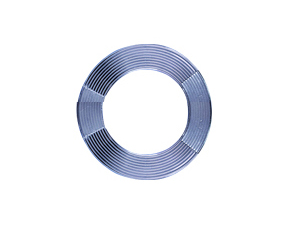

The fundamental principle behind a corrugated gasket is its engineered topography. Unlike flat sheets, these gaskets feature a series of concentric, sinusoidal waves or corrugations machined or formed into a metal core. This design is revolutionary for several reasons. First, it requires significantly lower bolt load to achieve an initial seal compared to solid metal gaskets, reducing the risk of flange damage and deformation. Second, the corrugations act as multiple, parallel sealing lines, creating a highly effective labyrinth against fluid or gas leakage. Third, the design provides exceptional "spring-back" or recovery, allowing the gasket to maintain seal integrity under fluctuating pressures and temperatures, a scenario where many other gaskets would fail.

Core Advantages of Kaxite Seals Corrugated Gaskets

Choosing Kaxite Seals for your corrugated gasket needs ensures you benefit from precision engineering and superior materials. Our gaskets are designed to deliver:

• Superior Sealability: Multiple concentric sealing contacts ensure a tight seal even on flanges with minor imperfections or scratches.
• High Pressure & Temperature Performance: Constructed from high-grade metals and alloys, our gaskets withstand extreme thermal cycling and high-pressure environments without creep relaxation.
• Excellent Bolt Load Efficiency: Achieve an effective seal with lower required bolt torque, minimizing flange stress and potential for bolt failure.
• Outstanding Resilience & Recovery: The corrugated structure allows the gasket to adapt to system vibrations, pressure spikes, and thermal expansion/contraction.
• Wide Chemical Compatibility: By selecting the appropriate base metal and filler material, we can tailor gaskets to resist a vast array of corrosive media.
• Reusability: When installed correctly on undamaged flanges, many of our corrugated gaskets can be reused, offering long-term cost efficiency.

Detailed Product Specifications & Configurations

Kaxite Seals manufactures corrugated gaskets to meet international standards (ASME B16.20, DIN, EN, JIS) and custom specifications. Our product range is defined by several critical parameters.

1. Material Construction

Our corrugated gaskets typically feature a composite structure for optimal performance:

• Metal Core: The structural heart, providing strength and spring-back. Common materials include:
  • Carbon Steel (A105, SS410)
  • Stainless Steel (304, 304L, 316, 316L, 321, 347)
  • Nickel Alloys (Inconel 600, 625, 718; Monel 400)
  • Titanium, Copper, Aluminum
• Filler Material: Impregnated within the corrugations to enhance sealability. Options include:
  • Expanded Graphite (Flexible Graphite) - for high temps, excellent chemical resistance.
  • PTFE (Teflon) - for ultimate chemical inertness and anti-stick properties.
  • Ceramic Fiber - for extremely high-temperature applications.
  • Mica - for high-temperature, non-asbestos solutions.
• Optional Features:
  • Inner & Outer Guide Rings: For centering the gasket and protecting the corrugated core from mechanical damage or media erosion.
  • Special Coatings: Anti-stick coatings (e.g., PTFE, Boron Nitride) for easier disassembly.

2. Technical Parameters Table

3. Selection Guide by Application

Corrugated Gaskets: Frequently Asked Questions (FAQ)

Q: When should I choose a corrugated gasket over a spiral wound gasket?

A: Both are excellent for high-pressure services, but the choice depends on specific needs. Corrugated gaskets generally require lower bolt load, offer better sealability on less-than-perfect flange surfaces due to multiple sealing lines, and have superior thermal cycling performance because of their inherent spring-back. Spiral wound gaskets, with their layered, wound structure, can handle higher compression and are often preferred for very high-pressure classes (e.g., 2500# and above) or where significant flange gap variation is expected. For standard to high-pressure applications with thermal cycles, a corrugated gasket from Kaxite Seals is often the more efficient and reliable choice.

Q: Can corrugated gaskets be used for vacuum service?

A: Yes, absolutely. Corrugated gaskets are an excellent choice for vacuum applications, especially when equipped with a flexible graphite filler. The graphite filler provides an exceptional barrier against helium leak rates, meeting stringent vacuum requirements. The metal core ensures the gasket maintains its shape and does not extrude under the external atmospheric pressure, preventing collapse into the flange cavity. It is critical to specify the correct density and grade of graphite to achieve the required leak rate (e.g., < 1 x 10^-9 mbar·l/s).

Q: How do I determine the correct bolt torque for installing a corrugated gasket?

A: The required bolt load is significantly lower than for solid metal gaskets like ring-type joints (RTJ). Always refer to the installation guidelines provided by Kaxite Seals with your gasket. The torque value is calculated based on the gasket's seating stress (yield point), the flange material, bolt grade, size, and number. A general rule is to use a criss-cross pattern and torque in multiple incremental steps (e.g., 30%, 60%, 100% of final torque) to ensure even compression. Over-torquing can crush the corrugations, damaging the core and reducing performance. Consulting ASME PCC-1 guidelines for bolted joint assembly is also recommended.

Q: Are Kaxite Seals corrugated gaskets reusable?

A: Under proper conditions, yes. If the flanged connection is disassembled for inspection or maintenance and both flange faces are in good condition (no deep scratches, gouging, or warping), and the corrugated gasket itself shows no signs of cracks, flattened corrugations, or disintegration of the filler material, it can often be reinstalled. However, for critical service involving hazardous, toxic, or expensive media, Kaxite Seals always recommends installing a new gasket to guarantee seal integrity. Reuse is at the user's risk and should follow a thorough inspection protocol.

Q: What is the lead time for custom-sized or special material corrugated gaskets?

A: At Kaxite Seals, we pride ourselves on flexibility. Standard sizes and materials are typically available from stock or have a short lead time of 1-2 weeks. For custom orders—including non-standard diameters, special alloys (like Titanium or Hastelloy), or unique configurations with guide rings—the lead time depends on material procurement and manufacturing complexity. Generally, custom orders are completed within 3 to 6 weeks. We offer expedited services for urgent project requirements; please contact our technical sales team with your specifications for an accurate quote and timeline.

Q: How does Kaxite Seals ensure the quality of its corrugated gaskets?

A: Quality is engineered into every Kaxite Seals product. Our process begins with certified raw materials, with full Material Test Certificates (MTCs) available. Precision CNC machining or forming is used to create the corrugation profile, ensuring consistency. The filler material is uniformly applied and calibrated. We perform 100% dimensional inspection against customer drawings or international standards. For critical applications, we can provide additional Non-Destructive Testing (NDT) such as dye penetrant inspection on the metal core. Our quality management system is certified to ISO 9001, ensuring traceability and consistent excellence from order to delivery.

Engineering Support from Kaxite Seals

Selecting the optimal corrugated gasket is a critical engineering decision. The team at Kaxite Seals provides more than just products; we offer partnership. Our technical engineers are available to review your application parameters—media, temperature, pressure, flange type, and cycle frequency—to recommend the perfect material combination and design. We can analyze failed gaskets to diagnose root causes and prevent future issues. Furthermore, we provide comprehensive installation guidance to ensure your sealing system achieves maximum reliability and service life. Trust Kaxite Seals to be your expert source for high-performance sealing solutions that safeguard your operations, your assets, and your bottom line.
