High-Performance Expanded graphite gaskets for Demanding Industrial Sealing

In the critical world of industrial sealing, where extreme temperatures, aggressive chemicals, and high pressures are daily challenges, selecting the correct gasket material is paramount to system integrity, safety, and operational efficiency. Among the premier solutions available today, expanded graphite gaskets stand out for their exceptional performance across a vast spectrum of applications. Engineered from pure, exfoliated graphite, these gaskets offer a unique combination of properties that traditional materials like compressed non-asbestos fiber (CNAF) or rubber simply cannot match. At Kaxite Seals, we specialize in manufacturing premium-grade expanded graphite gaskets designed to deliver reliable, long-lasting seals in the most demanding environments, from chemical processing and power generation to refining and aerospace.

Our commitment at Kaxite Seals is to provide not just a product, but a comprehensive sealing solution. We understand that downtime is costly, and seal failure is not an option. That’s why every Kaxite expanded graphite gasket is produced under stringent quality controls, using high-purity raw materials to ensure consistent, superior performance. Whether you require standard sheet stock, die-cut shapes, or complex custom-designed gaskets, our technical expertise is at your service to help you specify the perfect seal for your specific application.

Core Advantages of Kaxite Expanded Graphite Gaskets

The superiority of expanded graphite as a sealing material stems from its intrinsic physical and chemical characteristics. When you choose a Kaxite expanded graphite gasket, you benefit from:

• Exceptional Thermal Stability: Capable of continuous operation from cryogenic temperatures as low as -240°C (-400°F) up to 600°C (1112°F) in oxidizing atmospheres, and up to 3000°C (5432°F) in non-oxidizing, inert, or vacuum environments. This makes them ideal for applications involving extreme heat or cold.
• Superior Chemical Resistance: Highly inert and resistant to a wide range of aggressive media, including acids, alkalis, solvents, and hydrocarbons. They are not susceptible to swelling or degradation when exposed to most chemicals.
• Excellent Sealing Performance: The soft, conformable nature of expanded graphite allows it to flow into microscopic imperfections on flange surfaces, creating a tight, metal-to-metal-like seal with low seating stress. This ensures minimal leakage even at low bolt loads.
• Inherent Flexibility and Compressibility: They can compensate for flange irregularities, warpage, and thermal cycling without losing their sealing capability, reducing the risk of leak paths developing over time.
• Non-Contaminating and Clean: Made from pure graphite, these gaskets are free of binders, resins, or metals that could contaminate process fluids. This is critical for applications in food, pharmaceutical, and semiconductor industries.
• Long Service Life and Reliability: Resistant to creep relaxation and aging, ensuring the seal maintains its integrity over prolonged periods, reducing maintenance frequency and total cost of ownership.

Kaxite Expanded Graphite Gaskets: Detailed Product Specifications

To ensure precise engineering and selection, below are the detailed technical parameters for our standard expanded graphite gasket materials. Kaxite Seals offers various grades and reinforcements to meet specific pressure, temperature, and media requirements.

Standard Material Properties

Available Product Forms & Configurations

Kaxite Seals provides flexibility in how you procure and use our expanded graphite sealing solutions.

• Sheets & Rolls: Available in standard thicknesses from 0.5mm (0.020") to 6.0mm (0.250") for in-house gasket fabrication.
• Die-Cut Gaskets: Precision-cut to your 2D drawings for standard flanges (ANSI, DIN, JIS) or custom geometries.
• Reinforced Gaskets: Our expanded graphite can be laminated with various inserts for enhanced handling and performance:

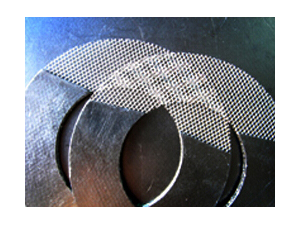

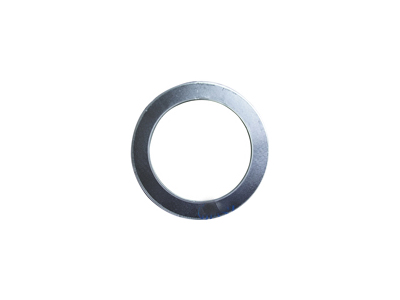

  • Stainless Steel Tanged/Perforated Core: For increased tensile strength and handling durability.
  • Stainless Steel Foil Lamination: Provides a barrier against oxidation and chemical permeation.
  • Inner/Outer Ring Reinforcement: Stainless steel rings for controlled compression and blow-out resistance in high-pressure services.
• Spiral Wound Gasket Filler: High-purity expanded graphite is used as the filler material in our ASME B16.20 compliant spiral wound gaskets.
• Custom Shapes & Kits: Complex multi-hole patterns, jacketed gaskets, and complete sealing kits for specific equipment.

Frequently Asked Questions (FAQ) About Expanded Graphite Gaskets

Q: What are the primary applications for expanded graphite gaskets?
A: Expanded graphite gaskets from Kaxite Seals are exceptionally versatile. They are widely used in industries such as chemical and petrochemical processing (for reactors, columns, heat exchangers), power generation (in turbines, boilers, exhaust systems), oil and gas refining, pharmaceutical manufacturing, food and beverage processing, and in any application involving high temperatures, aggressive chemicals, or where purity of the medium is crucial. Their stability also makes them perfect for cryogenic applications like LNG handling.

Q: Can expanded graphite gaskets be used on flanges with low bolt load?
A: Yes, this is one of their key advantages. Due to their softness and high compressibility, expanded graphite gaskets require a relatively low sealing stress (often below 30 MPa) to achieve an effective seal compared to many semi-metallic or rigid gaskets. They conform easily to flange faces, making them suitable for applications where high bolt loads are impractical or where flange design limits loading.

Q: How do I handle and store expanded graphite gasket sheets or products?
A: While robust in service, bare expanded graphite sheets are somewhat flexible and can be delicate before installation. Store them in a dry, flat location away from direct sunlight and moisture. Avoid folding or creasing the material. For handling, use clean gloves to prevent oil contamination from skin. When cutting, use sharp, clean tools. Kaxite Seals often supplies materials with protective release liners or in reinforced forms (like with a tanged metal core) to greatly improve handling strength and ease of use.

Q: Are there any fluids or environments where expanded graphite gaskets are not recommended?
A: While chemically resistant to most media, pure expanded graphite is not recommended for continuous use in strongly oxidizing environments at high temperatures (e.g., concentrated nitric acid, sulfuric acid above certain concentrations, or molten salts). In such cases, oxidation can occur, leading to gradual material loss. For these challenging applications, Kaxite Seals offers specially treated graphite (e.g., oxidation-inhibited grades) or alternative solutions like PTFE-lined or metal-jacketed graphite gaskets. Always consult our technical team for specific media compatibility.

Q: What is the difference between expanded graphite and compressed non-asbestos (CNAF) gasket materials?
A: They are fundamentally different. CNAF is a composite material made from fibers (aramid, cellulose, glass) and elastomeric binders. It has good general-purpose sealing ability but is limited in temperature (typically -40°C to 290°C) and chemical resistance. Expanded graphite is a pure, binder-free material with a much wider temperature range, superior chemical resistance (especially to solvents and hydrocarbons), better thermal conductivity, and lower sealing stress requirements. For demanding services, expanded graphite from Kaxite is often the superior, longer-lasting choice.

Q: Do you offer fire-safe certified expanded graphite gaskets?
A: Absolutely. Kaxite Seals can supply expanded graphite gaskets that comply with major international fire-safe testing standards such as API 6FB, API 607, ISO 10497, and BS 6755 Part 2. These gaskets are tested to maintain a seal during and after exposure to direct flame, making them mandatory for critical services in refineries, offshore platforms, and chemical plants where fire safety is paramount.

Q: How do I select the right thickness and style for my application?
A: Selection depends on several factors: flange type (flat face, raised face, male-female), surface finish, operating pressure/temperature, medium, and bolt load. As a general guide:

• For standard raised face flanges (RF), a 1.5mm thickness is common.
• For flanges with imperfections or low load, a thicker (e.g., 3.0mm) or more compressible grade may be better.
• For high pressure or to prevent blow-out, a gasket with stainless steel inner ring reinforcement is recommended.
• For easy handling and automation, a tanged metal core reinforced sheet is ideal.

Why Partner with Kaxite Seals for Your Graphite Sealing Needs?

Choosing Kaxite Seals means more than purchasing a gasket; it's partnering with a dedicated expert in high-performance sealing technology. Our focus on expanded graphite is backed by deep material science knowledge and practical application experience. We control our manufacturing process from raw material sourcing to final inspection, ensuring every product that carries the Kaxite name meets the highest standards of quality and reliability. We provide comprehensive technical support, from initial consultation and material selection to installation guidance, helping you solve complex sealing challenges and improve the efficiency and safety of your operations. When your application demands a seal that can withstand the extremes, trust the expertise and product excellence of Kaxite Seals.
