Custom copper gasket manufacturing supplier solutions for OEM and bulk orders from China

Primary Industrial Applications

Kaxite Seals copper gaskets are trusted in sectors where failure is not an option:

• Oil & Gas (Upstream, Midstream, Downstream): Wellheads, Christmas trees, pipeline flanges, compressors, refinery heat exchangers.
• Power Generation: Gas turbines, steam turbines, boiler penetrations, heat recovery steam generators (HRSGs).
• Aerospace & Defense: Jet engine components, rocket propulsion systems, fuel and hydraulic lines.

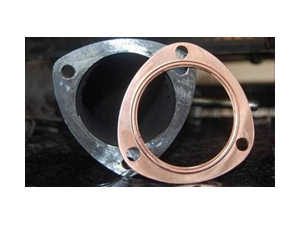

• Automotive & High-Performance Racing: Cylinder head gaskets (often as part of a multi-layer steel design), turbocharger fittings, exhaust systems.
• Chemical & Petrochemical Processing: Reactors, high-pressure vessels, pump and valve seals in corrosive service.
• HVAC & Refrigeration: Compressor flanges, high-pressure refrigerant lines.
• Vacuum Systems: Chambers, feedthroughs, and equipment where outgassing and ultra-high vacuum integrity are critical.

Copper Gaskets: Frequently Asked Questions (FAQ)

Q: When should I choose a copper gasket over a softer gasket material like graphite or rubber?

A: Choose a copper gasket for high-temperature (above 450°F/232°C) or high-pressure applications, for services involving organic solvents or hydrocarbons that degrade elastomers, or when you need a metal-to-metal seal with high thermal conductivity. Rubber and graphite are better for lower pressure/temperature and for sealing on less-perfect flange surfaces where high conformability is needed.

Q: Are copper gaskets suitable for oxidizing atmospheres at high temperature?

A: Copper can oxidize when exposed to air at high temperatures, forming a surface layer of copper oxide. While this can provide some sealing effect, for best long-term performance in severe oxidizing environments, copper gaskets are often plated with nickel or tin, or an alternative alloy like stainless steel or Inconel may be recommended. Kaxite Seals can advise on the best material for your specific atmosphere.

Q: How do I determine the correct hardness for my copper gasket application?

A: Hardness affects sealability and crush resistance. Softer (annealed) copper gaskets seal more easily on flanges with minor imperfections but may extrude under very high pressure. Harder tempers provide greater resistance to blow-out and creep relaxation in high-pressure/temperature cycles. The flange surface finish, bolting load, and pressure are key factors. Kaxite Seals engineers can help specify the ideal temper.

Q: Can Kaxite Seals manufacture copper gaskets to non-standard dimensions or special cross-sections?

A: Absolutely. Customization is a core strength. We routinely produce gaskets to customer-provided drawings, including special profiles like Kammprofile with a copper core, oval or octagonal ring gaskets for specific flange grooves (R.O., R.R.), and gaskets with unusual bolt hole patterns or integrated alignment features.

Q: What is the proper installation procedure for a copper ring gasket?

A: Correct installation is critical. Ensure the flange groove is clean, undamaged, and free of old gasket material. Lightly lubricate the gasket with an approved anti-seize compound to prevent galling. Carefully place the gasket into the groove—it should seat without forcing. Use a calibrated torque wrench to tighten bolts in a star-pattern sequence to the specified torque value, often in multiple incremental passes, to ensure even compression.

Q: How many times can I reuse a copper gasket?

A: Reusability depends on the application severity. For low-pressure, low-temperature services, a copper gasket may be reused several times if it shows no signs of cracking, excessive thinning, or permanent set. For critical high-pressure/temperature services, reuse is generally not recommended as the gasket undergoes work-hardening and may not achieve the same seal on subsequent uses. Always inspect thoroughly before considering reuse.

Q: Why are copper gaskets sometimes plated with another metal?

A: Plating (e.g., nickel, tin, silver) serves multiple purposes: it enhances corrosion resistance against specific chemicals; it prevents galvanic corrosion when mating with dissimilar metals (like aluminum or steel); and it reduces the tendency for galling (cold-welding) during bolt-up, especially on stainless steel flanges.
