Premium PTFE Gaskets: The Definitive Sealing Solution for Demanding Applications

In the complex world of industrial sealing, few materials have earned a reputation as formidable as Polytetrafluoroethylene, universally known as PTFE. Renowned for its exceptional chemical inertness, wide temperature tolerance, and outstanding non-stick properties, PTFE has become the cornerstone for gasketing in the most challenging environments. At Kaxite Seals, we leverage over two decades of specialized engineering to transform this remarkable polymer into precision sealing components that set the benchmark for reliability, performance, and longevity. Our PTFE Gaskets are not just products; they are engineered solutions designed to eliminate leakage, reduce maintenance downtime, and ensure operational safety across a vast spectrum of industries.

Understanding the critical role a gasket plays in system integrity, Kaxite Seals dedicates unparalleled attention to every stage of production. From sourcing high-purity, virgin PTFE resins to employing state-of-the-art machining and molding techniques, we ensure each gasket delivers consistent, leak-free performance. Whether facing aggressive acids, volatile solvents, extreme temperatures, or demanding purity requirements, our PTFE Gaskets provide a robust and dependable barrier.

Unmatched Material Properties of Kaxite PTFE

The superiority of our gaskets stems from the intrinsic properties of PTFE, which we optimize for sealing performance:

• Chemical Inertness: PTFE is virtually unaffected by almost all industrial chemicals, including strong acids, bases, and solvents. This makes Kaxite PTFE Gaskets ideal for chemical processing, pharmaceutical, and semiconductor manufacturing.
• Extreme Temperature Range: PTFE maintains its flexibility and sealing force from cryogenic temperatures as low as -268°C (-450°F) up to a continuous 260°C (500°F). This broad range eliminates the need for material changes across many applications.
• Excellent Dielectric Properties: PTFE is a superb electrical insulator, making it perfect for applications in electrical and electronic equipment where sealing and insulation are required simultaneously.
• Very Low Coefficient of Friction: PTFE has the lowest coefficient of friction of any solid material. This non-stick, self-lubricating property prevents adhesion to flange faces and facilitates easier installation and removal.
• Zero Moisture Absorption: PTFE does not absorb water or moisture, ensuring dimensional stability and sealing performance in humid or wet environments.
• FDA Compliance & USP Class VI: Our pure white, virgin PTFE grades comply with FDA regulations for food contact and meet USP Class VI standards for biocompatibility, making them suitable for food & beverage and medical applications.

Kaxite PTFE Gaskets: Technical Specifications & Product Range

Kaxite Seals offers a comprehensive portfolio of PTFE gasket types, each engineered for specific service conditions and installation requirements. Our standard and custom offerings include:

Product Types

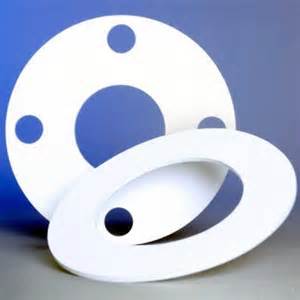

• Virgin PTFE Gaskets: Manufactured from 100% pure PTFE resin, offering the highest level of chemical resistance and purity. Available in sheet, molded, or machined forms.

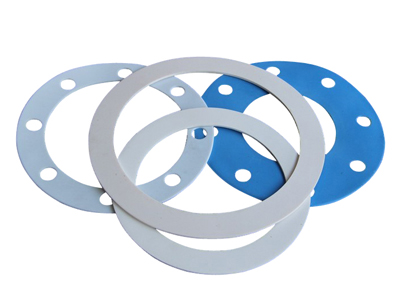

• Reinforced PTFE Gaskets (e.g., Glass Filled, Carbon Filled): Enhanced with fillers to improve creep resistance, reduce deformation under load, and increase mechanical strength for higher-pressure applications.
• Expanded PTFE (ePTFE) Gaskets & Tape: A soft, conformable, and highly compressible form of PTFE. Excellent for sealing irregular surfaces, low bolt-load flanges, and as a versatile sealing tape for thread seals and makeshift gaskets.

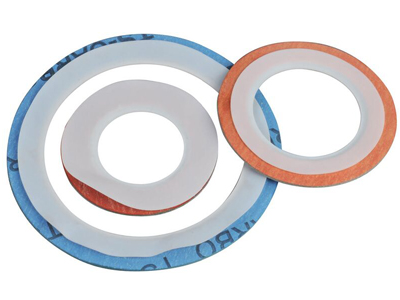

• PTFE Envelope Gaskets: Feature a corrosion-resistant PTFE envelope filled with a resilient material (like rubber or graphite). They combine the chemical resistance of PTFE with the sealing resilience of the filler.
• PTFA Coated Gaskets: A cost-effective solution where a layer of PTFE is bonded to a substrate material (like rubber or compressed asbestos-free fiber), providing a PTFE sealing surface.

Detailed Product Parameter Table

*ePTFE can handle higher short-term peak temperatures due to its expanded structure.

Standard Sizes & Specifications

• Sheet Thickness: Available from 0.5mm (0.020") to 10mm (0.394") in standard increments.
• Standard Shapes: Full face, flat ring (RA/RB), oval, octagonal, and custom machined profiles.
• Flange Standards: ANSI B16.21, ASME B16.5, DIN, JIS, and other international standards.
• Color: Virgin PTFE is pure white. Filled compounds may be off-white, brown, or black depending on the filler.

Kaxite PTFE Gaskets: Frequently Asked Questions (FAQ)

What is the main advantage of using a PTFE gasket over a rubber gasket?

The primary advantage is unparalleled chemical resistance. While rubber gaskets degrade quickly when exposed to many chemicals, solvents, and oils, PTFE gaskets are inert to nearly all of them. Additionally, PTFE offers a much wider operating temperature range and does not age or harden like rubber over time.

Can Kaxite PTFE Gaskets be used for high-pressure applications?

Pure, virgin PTFE has a tendency to "cold flow" or creep under sustained high pressure and bolt load. For high-pressure applications, we strongly recommend using our reinforced PTFE grades (like glass-filled or carbon-filled) or our high-density ePTFE gaskets. These materials have significantly improved creep resistance and can handle static pressures up to 3,000 psi depending on the design and flange conditions.

How do I choose between Virgin PTFE and Expanded PTFE (ePTFE)?

Choose Virgin PTFE when you require the absolute highest purity and chemical resistance for processes involving ultra-pure fluids, aggressive chemicals, or where FDA compliance is mandatory. Choose Expanded PTFE (ePTFE) when you need to seal irregular, scratched, or warped flange surfaces, when bolt load is limited, or when you need a highly conformable and easy-to-install gasket or sealing tape. Our Kaxite Seals engineers can help you select the optimal material.

Are PTFE gaskets reusable?

PTFE gaskets are generally not designed to be reusable, especially virgin PTFE sheet cut gaskets. Once compressed during installation, they take a "set" to the flange faces. Reusing them can compromise the seal integrity. However, certain thick-sectioned, molded PTFE gaskets or specially designed ePTFE gaskets may tolerate careful disassembly and re-installation if they are undamaged. We always recommend using a new gasket for critical sealing applications to ensure reliability.

What is the proper installation torque for a PTFE gasket?

Correct bolt torque is critical. Over-torquing can cause excessive cold flow and extrusion of the gasket, while under-torquing can lead to leakage. The optimal torque depends on the PTFE type (virgin, filled, ePTFE), gasket thickness, flange material, and bolt size. As a general rule, PTFE requires higher bolt loads than rubber but lower than semi-metallic gaskets. Always refer to our Kaxite Seals installation guide or consult our technical team for specific torque recommendations based on your assembly.

Does Kaxite Seals offer custom-shaped PTFE gaskets?

Absolutely. While we stock a wide range of standard sizes, a significant portion of our business is dedicated to manufacturing custom PTFE gaskets. We can precision machine or mold PTFE into virtually any shape, size, or cross-section, including complex profiles, large diameters, and components with incorporated features. Send us your drawings or specifications for a prompt quote.

Are PTFE gaskets suitable for oxygen service?

Yes, but with critical precautions. PTFE itself is compatible with oxygen. However, for high-pressure oxygen service, the gasket must be meticulously cleaned of all organic contaminants (oil, grease) during manufacturing and handling. Kaxite Seals can provide specially cleaned and packaged PTFE gaskets for oxygen service to meet the stringent requirements of industries like aerospace and gas processing.

Industries Served by Kaxite PTFE Gaskets

The versatility of PTFE makes our gaskets indispensable across numerous sectors:

• Chemical & Petrochemical: Reactors, columns, heat exchangers, piping, and pumps handling corrosive acids, alkalis, and solvents.
• Pharmaceutical & Biotechnology: Fermenters, filtration systems, piping, and vessels where purity, sterilizability, and compliance are paramount.
• Food & Beverage: Processing equipment for juices, dairy, brewing, and edible oils, requiring FDA-compliant, non-contaminating seals.
• Semiconductor Manufacturing: Ultra-high purity (UHP) gas and chemical delivery systems where even minute contamination is unacceptable.
• Power Generation: Sealing in flue gas desulfurization (FGD) units, chemical dosing systems, and general plant utility services.
• Industrial Manufacturing: Hydraulic systems, plating lines, and general equipment requiring a durable, chemical-resistant seal.
