High-Performance Flange Insulation Gasket Kits for Industrial Wholesale Applications

In industrial piping and flanged connection systems, preventing galvanic corrosion and ensuring electrical isolation are critical for safety, longevity, and system integrity. This is where Flange Insulation Gasket Kits become an indispensable engineering solution. Specifically engineered to interrupt the electrical current path between dissimilar metals, these kits protect your valuable assets from costly corrosion damage and dangerous stray currents. Kaxite Seals, a leader in high-performance sealing and insulation solutions, provides a comprehensive range of these kits, designed to meet the rigorous demands of oil & gas, chemical processing, water treatment, and power generation industries.

The principle behind flange insulation is straightforward yet vital. When two different metals (like carbon steel and stainless steel) are in contact within an electrolytic environment (such as moist soil or water), they form a galvanic cell. This leads to accelerated corrosion of the less noble (anodic) metal. An insulation gasket kit breaks this metallic contact, effectively stopping the corrosion process. Beyond corrosion control, these kits are essential for cathodic protection systems, providing necessary isolation, and for preventing the transmission of electrical faults in piping networks.

Key Components of a Flange Insulation Gasket Kit

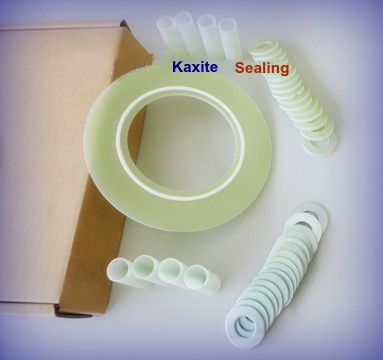

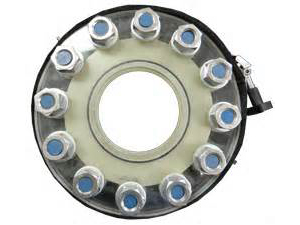

A complete flange insulation gasket kit from Kaxite Seals is not just a single gasket; it's a system. Each kit typically includes all necessary components to fully isolate a flanged joint both electrically and physically. The standard configuration consists of:

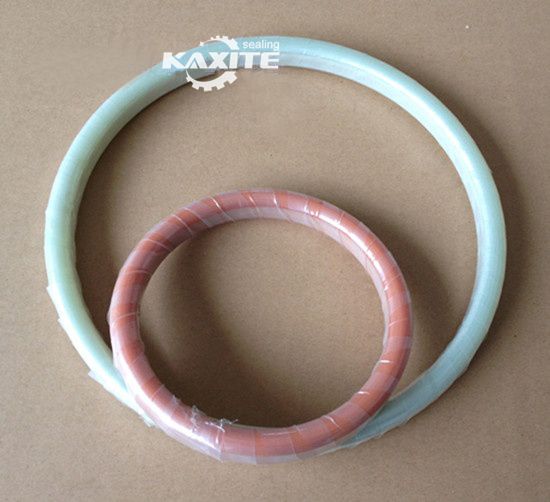

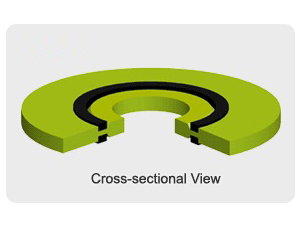

• Insulation Gasket: The core component, placed between the flange faces. Made from durable, non-conductive materials like PTFE (Teflon), PEEK, or composite materials with dielectric properties.
• Insulating Washers/Sleeves: These are fitted onto the bolts or studs. The sleeves isolate the bolt shank from the inside of the flange hole, while the washers isolate the bolt head/nut from the flange surface.
• Insulating Washers: Placed under the bolt head and the nut to prevent electrical contact at these points.
• Steel Washers: Often included to be placed on the outer side of the insulating washers. They distribute the bolt load, prevent galling, and protect the softer insulating material from damage during tightening.
• Centralizing Ring (Optional for certain designs): Ensures the gasket is perfectly centered within the flange bore for optimal sealing and performance.

Detailed Product Parameters & Specifications

Kaxite Seals offers flange insulation kits in a wide variety of materials, sizes, and pressure ratings to suit virtually any application. The selection of materials is crucial for compatibility with the process fluid, temperature, and pressure.

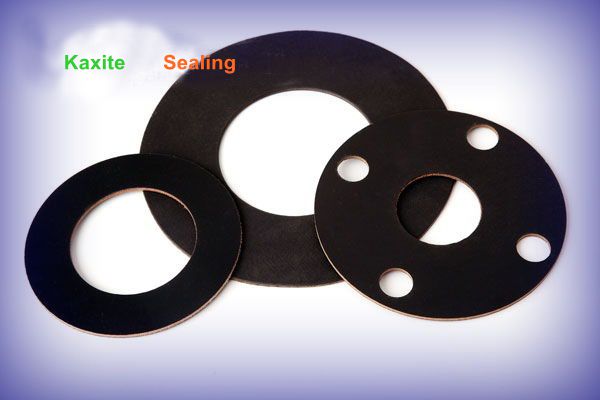

Primary Insulation Gasket Material Options:

Standard Kit Specifications:

Frequently Asked Questions (FAQ) About Flange Insulation Gasket Kits

Q: When is a flange insulation gasket kit required?

A: A kit is required in several key scenarios: 1) To prevent galvanic corrosion between flanges made of dissimilar metals (e.g., connecting a carbon steel pipe to a stainless steel valve). 2) As part of an impressed current or sacrificial anode cathodic protection system to define the protected section. 3) To electrically isolate sections of piping for safety, such as preventing the transmission of fault currents or stray electrical currents from welding, rail systems, or power lines. 4) In sensitive instrumentation lines where electrical noise or currents must be blocked.

Q: Can I use just the insulating gasket without the washers and sleeves?

A: No, this is a common and critical mistake. The bolt itself creates a metal-to-metal bridge between the two flanges, bypassing the insulation gasket. For complete electrical isolation, every possible metallic contact point must be broken. This includes the bolt shank (via sleeves) and the bolt head/nut (via insulating washers). Using a full Kaxite Seals kit ensures a properly isolated joint.

Q: How do I select the right material for my application?

A: Material selection depends on three primary factors: Service Temperature, Chemical Compatibility, and Pressure. First, identify the maximum and minimum temperature of your process fluid. Then, check the chemical resistance of the candidate materials (PTFE is nearly universal, PEEK is excellent for hydrocarbons and steam). Finally, ensure the material's pressure rating exceeds your system's maximum operating pressure, considering factors like creep resistance. Consulting with Kaxite Seals engineers is always recommended for critical applications.

Q: How do I install a flange insulation kit correctly?

A: Proper installation is key to performance. Clean the flange faces thoroughly. Insert the insulating sleeves into the bolt holes of both flanges. Place the insulation gasket between the flange faces, ensuring it is centered. Assemble the bolts with the components in this order (from bolt head down): Steel washer, insulating washer, flange, sleeve, other flange, insulating washer, steel washer, nut. Tighten the bolts gradually in a star or cross pattern to the specified torque value to ensure an even seal without crushing the insulating components.

Q: How do I test if an installed insulation kit is working?

A: Insulation resistance should be verified after installation. Using a low-resistance ohmmeter or a megohmmeter, measure the resistance across the isolated joint (from one pipe section to the other). A properly installed joint should show a very high resistance, typically in the megaohm (MΩ) range. A low reading indicates a short circuit, often caused by missing components, damaged insulation, or conductive debris trapped in the joint.

Q: Are these kits reusable?

A: Generally, flange insulation gasket kits are considered non-reusable, especially the gasket itself. During torqueing, the insulating materials compress and conform to the flange faces. Reusing them can compromise the seal integrity and dielectric properties. The washers and sleeves may sometimes be reused if they are undamaged, but for guaranteed performance and safety, Kaxite Seals recommends using a new kit for any flange reassembly.

Q: Can Kaxite Seals provide custom kits for non-standard flanges?

A: Absolutely. While we stock a vast range of standard ANSI and DIN kits, our engineering team specializes in designing and manufacturing custom flange insulation gasket kits for special flanges, large diameters, exotic materials, or extreme service conditions. We can work from your drawings or specifications to deliver a solution tailored to your exact needs.

Why Choose Kaxite Seals for Your Insulation Needs?

Selecting Kaxite Seals means investing in reliability and expertise. Our kits are manufactured with precision from rigorously tested materials to ensure consistent dielectric performance and leak-free sealing. Every component is clearly labeled and packaged as a complete set, eliminating confusion on-site and preventing installation errors. We understand that downtime is costly, and failure is not an option. Our technical support team is available to assist with material selection, installation queries, and application challenges, providing you with not just a product, but a complete insulation solution backed by decades of industry knowledge.
