Leading Aramid Fiber Packing Manufacturer for High-Performance Sealing Solutions

High-Performance Aramid Fiber Packing for Demanding Sealing Applications

In the world of industrial sealing, where extreme pressures, aggressive chemicals, and high temperatures are the norm, standard packing materials often fall short. Engineers and maintenance professionals require a solution that combines exceptional strength, durability, and reliability. This is where Aramid Fiber Packing from Kaxite Seals excels. Engineered from synthetic aromatic polyamide fibers, the same advanced material used in ballistic armor and aerospace composites, our packing offers an unparalleled balance of properties for the most challenging sealing environments.

Kaxite Seals specializes in manufacturing premium-grade aramid fiber packing designed to outperform traditional materials like asbestos, PTFE, and graphite. Our products are meticulously engineered to provide longer service life, reduce maintenance downtime, and deliver superior leak control across a vast spectrum of industrial applications.

Core Advantages of Kaxite Seals Aramid Fiber Packing

The superior performance of our aramid packing stems from the intrinsic qualities of the aramid fibers and our proprietary manufacturing processes. Key benefits include:

• Exceptional Tensile Strength: Possesses a strength-to-weight ratio far exceeding steel, providing outstanding resistance to extrusion and blow-out under high pressure.
• Excellent Chemical Resistance: Highly resistant to a wide range of chemicals, including solvents, hydrocarbons, alkalis, and steam, ensuring integrity in corrosive service.
• High-Temperature Stability: Maintains structural integrity and sealing force at continuous operating temperatures up to 300°C (572°F), with short-term peaks even higher.
• Low Thermal Conductivity & Non-Conductive: Ideal for insulating applications and for use on equipment where electrical conductivity is a concern.
• Outstanding Abrasion Resistance: The tough, flexible fibers exhibit minimal wear against shaft or sleeve surfaces, extending both packing and equipment life.
• Flexible and Conformable: Easily adapts to irregular seating surfaces and gland geometries for an effective initial seal.
• Environmentally Safe: Contains no asbestos or hazardous metals, offering a safe, modern sealing solution.

Detailed Product Specifications and Data

To facilitate proper selection and engineering, below are the detailed technical parameters for standard Kaxite Seals Aramid Fiber Packing grades. We also offer custom formulations to meet specific OEM or application requirements.

Standard Physical & Mechanical Properties

• Fiber Type: High-purity, continuous filament aromatic polyamide (Aramid).
• Construction: Braided over braided (BOB) or twisted & braided for optimal density and sealing performance.
• Density: 1.0 - 1.2 g/cm³ (varies by lubricant/impregnation).
• pH Range: 4 - 12 (for standard grades).
• Color: Typically yellow/gold (pure aramid), but may vary with impregnation.

Performance Data Table

Available Styles & Impregnations

Typical Applications for Kaxite Aramid Packing

Our packing is specified across diverse industries due to its versatility and robustness:

• Chemical & Petrochemical Processing: Pump seals for acids, alkalis, solvents, and hydrocarbons. Valve stem packing in reactors and columns.
• Power Generation: Boiler feed pumps, steam turbine valves, and other high-pressure/high-temperature steam services.
• Oil & Gas: Swivel joints, Christmas tree valves, downhole tools, and pipeline valve seals.
• Marine & Shipbuilding: Stern tube seals, pump shaft seals in engine rooms, and deck machinery.
• Pulp & Paper: Digester circulator pumps, black liquor pumps, and other aggressive chemical services.
• General Industrial: Mixer shaft seals, autoclave doors, compressor rod packing, and hot oil pumps.

Installation Guidelines for Optimal Performance

Correct installation is critical to achieving the long service life and leak-free performance Kaxite Seals packing is designed for. Follow these general guidelines:

1. Clean the Stuffing Box: Thoroughly clean the shaft/sleeve and stuffing box cavity, removing all old packing and debris. Inspect for scoring or damage.
2. Check Ring Alignment: Ensure lantern ring (if used) is correctly positioned relative to the injection/vent port.
3. Cut Rings Precisely: Use a sharp tool. Wrap the packing neatly around a mandrel of the exact shaft/sleeve diameter. Cut each ring at a 45-degree angle (skive cut) for best seam sealing. Stagger joints 90 degrees between rings.
4. Install Rings Carefully: Insert each ring one at a time, using a split installation tool to seat it firmly and evenly without twisting or damaging the braid.
5. Initial Gland Adjustment: After all rings are installed, hand-tighten the gland nuts evenly. For new packing, it is normal to have slight initial leakage. Start the equipment and gradually tighten the gland in 1/4-turn increments at 10-15 minute intervals until leakage is reduced to a minimal, acceptable drip (typically 1-2 drops per minute for lubrication). Do not over-tighten.
6. Run-in Period: Allow for a run-in period of several hours to days, re-adjusting the gland slightly as the packing conforms and wears in.

Frequently Asked Questions (FAQ) about Aramid Fiber Packing

What is the primary difference between aramid fiber packing and graphite packing?

While both are used in high-temperature applications, aramid fiber packing offers vastly superior tensile and mechanical strength, making it much more resistant to extrusion and physical damage under high pressure or in equipment with significant runout. Graphite packing is softer and more conformable, excellent for static seals and low-pressure dynamic applications, but can extrude more easily. Aramid is also a non-conductive insulator, whereas graphite is electrically conductive.

Can Kaxite Seals Aramid Packing handle abrasive media?

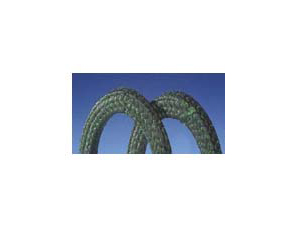

Yes, aramid fiber inherently has excellent abrasion resistance, which is a key advantage. However, for highly abrasive slurries (e.g., containing silica sand), we often recommend our KX-AF-GR grade with graphite impregnation, as the graphite acts as an additional lubricant to protect both the packing and the shaft. Always consult our technical team for specific abrasive service recommendations.

Is it suitable for potable water or food processing applications?

Our KX-AF-PTFE grade, impregnated with FDA-compliant PTFE lubricants, is specifically designed for such services. It is non-toxic, chemically inert, and meets relevant regulatory standards for incidental food contact. Certification documentation is available upon request.

How do I select the correct grade for my specific fluid and temperature?

Selection is based on the chemical compatibility of the aramid fiber AND the impregnating lubricant with your process fluid, as well as the operating temperature. Use our chemical compatibility charts for the base aramid fiber. Then, match the lubricant: PTFE for broad chemical resistance, graphite for high-temperature non-oxidizing environments, and synthetic oil for hydrocarbon services. Our technical datasheets provide detailed guidance, and our engineering team is always ready to assist.

Why is my new aramid packing leaking more than expected initially?

Some initial leakage is normal and necessary for lubrication and heat dissipation in dynamic applications. Aramid fiber packing requires a run-in period to allow the fibers to adjust, seat properly, and transfer lubricant to the shaft interface. The key is to follow the gradual tightening procedure outlined in the installation guidelines. Over-tightening during initial startup will generate excessive friction and heat, glazing the packing surface and preventing it from ever sealing properly, leading to rapid failure.

Can this packing be used on equipment with significant shaft runout or misalignment?

Aramid fiber's flexibility and strength make it more forgiving of minor to moderate shaft deflection and runout compared to many brittle or hard packing materials. However, excessive runout (>0.004 inches / 0.1 mm TIR) will accelerate wear and cause premature failure on any packing. For equipment with known runout issues, we recommend addressing the root cause first. For unavoidable movement, our braided-over-braided construction provides the best resilience.

How does the cost of aramid packing compare to other types, and is it worth it?

Initially, aramid fiber packing often has a higher purchase price than standard PTFE or graphite styles. However, the true cost must be evaluated as Total Cost of Ownership. This includes the frequency of repacking, downtime for maintenance, product loss from leakage, and energy consumption from gland friction. Kaxite Seals Aramid Packing consistently demonstrates significantly longer service intervals, reduced leakage, and lower maintenance costs, delivering a strong return on investment (ROI) in demanding applications.

For precise sizing, custom configurations, or application-specific engineering support, please contact the Kaxite Seals technical department with your equipment and operating parameters.
