High-Quality PTFE Sheets Manufacturer for Industrial Applications

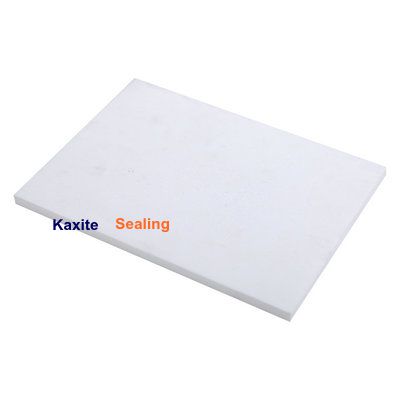

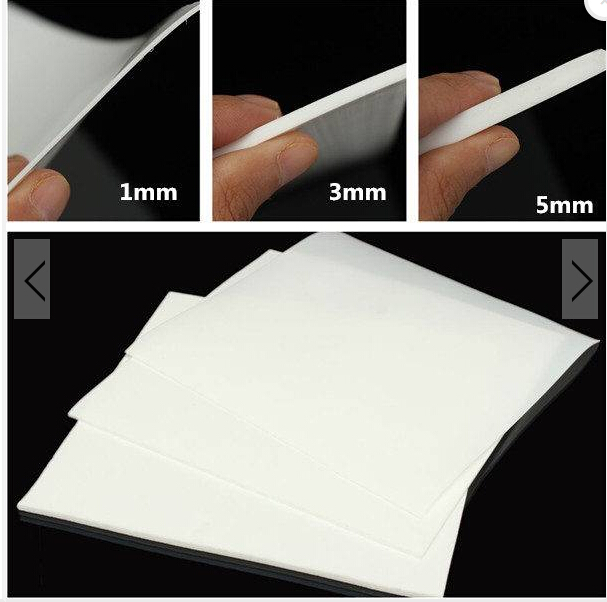

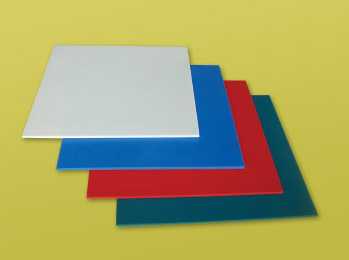

PTFE Sheet, also known as Teflon® sheet or Polytetrafluoroethylene sheet, stands as a cornerstone material in modern industrial applications due to its unparalleled chemical resistance, exceptional thermal stability, and outstanding non-stick properties. At Kaxite Seals, we specialize in manufacturing high-performance PTFE sheets engineered to meet the rigorous demands of industries ranging from chemical processing and pharmaceuticals to food production and aerospace. Our commitment to precision engineering and material purity ensures that every Kaxite Seals PTFE sheet delivers reliable, long-lasting performance in even the most challenging environments. This comprehensive guide details our product specifications, applications, and addresses common technical inquiries. ### Material Composition & Key Characteristics Kaxite Seals PTFE sheets are produced from 100% virgin Polytetrafluoroethylene resin, ensuring consistency and high performance. The material is sintered under controlled conditions to achieve optimal mechanical properties. * **Chemical Inertness:** Impervious to virtually all industrial chemicals and solvents, including strong acids, bases, and oxidizing agents. * **Extreme Temperature Range:** Maintains functionality from -200°C (-328°F) to +260°C (+500°F) continuously, with short-term tolerance up to 300°C (572°F). * **Excellent Dielectric Properties:** Possesses very high dielectric strength and low dissipation factor, making it an ideal insulator. * **Ultra-Low Coefficient of Friction:** Offers the lowest coefficient of friction of any solid material, providing excellent anti-stick and low-wear characteristics. * **Non-Toxic & FDA Compliant:** Grades available that comply with FDA regulations for use in food and pharmaceutical contact applications. * **Weather & UV Resistance:** Unaffected by sunlight, ozone, or weathering, suitable for outdoor use. ### Kaxite Seals PTFE Sheet Standard Product Parameters Our PTFE sheets are available in various grades and forms to suit specific application needs. Below are the detailed specifications for our standard offerings. #### Standard Sheet Specifications Table | Parameter | Standard Grade | Glass Filled Grade (15%) | Carbon Filled Grade (25%) | Virgin FDA Grade | | :--- | :--- | :--- | :--- | :--- | | **Density (g/cm³)** | 2.15 - 2.20 | 2.20 - 2.30 | 2.10 - 2.20 | 2.15 - 2.18 | | **Tensile Strength (psi)** | 3,000 - 5,000 | 2,500 - 3,500 | 2,000 - 3,000 | 3,000 - 4,500 | | **Elongation at Break (%)** | 300 - 500 | 200 - 350 | 150 - 300 | 350 - 500 | | **Compressive Strength (psi)** | 1,700 | 2,200 | 2,500 | 1,600 | | **Coefficient of Friction (dynamic)** | 0.05 - 0.10 | 0.10 - 0.13 | 0.10 - 0.15 | 0.05 - 0.10 | | **Continuous Service Temp.** | -200°C to +260°C | -200°C to +260°C | -200°C to +260°C | -200°C to +260°C | | **Thermal Conductivity (W/m·K)** | 0.25 | 0.35 | 0.40 | 0.25 | | **Primary Color** | White | Brown/White | Black | White | | **Typical Applications** | Gaskets, liners, seals | Bearings, bushings, wear pads | Compressive seals, piston rings | Food processing, medical | #### Available Size & Thickness List Kaxite Seals PTFE sheets are supplied in standard sizes with custom cutting available upon request. * **Sheet Dimensions:** * 24" x 24" (610mm x 610mm) * 36" x 36" (915mm x 915mm) * 48" x 48" (1220mm x 1220mm) * 48" x 96" (1220mm x 2440mm) – Rolled for shipping * **Standard Thickness Range:** * 1/64" (0.4mm) * 1/32" (0.8mm) * 1/16" (1.5mm) * 1/8" (3.0mm) * 1/4" (6.0mm) * 1/2" (12.7mm) * Up to 2" (50mm) available ### Primary Industrial Applications Kaxite Seals PTFE sheets are utilized across diverse sectors: * **Chemical Processing:** Gaskets, valve seats, tank linings, and expansion joints for handling corrosive fluids. * **Food & Beverage:** Conveyor liners, guide rails, release sheets, and sealing surfaces in compliance with hygiene standards. * **Pharmaceutical:** Equipment lining for reactors and vessels, non-reactive work surfaces, and critical seals. * **Electrical & Semiconductor:** High-purity insulator sheets, wafer carrier components, and fixtures in cleanrooms. * **Aerospace & Automotive:** High-temperature seals, bushings, and low-friction wear pads in engines and fuel systems. * **General Manufacturing:** Anti-stick surfaces for heat sealing, laminating presses, and low-friction sliding applications. ### Frequently Asked Questions (FAQ) About PTFE Sheets **Q: What is the main difference between pure/virgin PTFE and filled PTFE sheets?** **A:** Virgin PTFE sheets offer the highest chemical purity, electrical resistance, and lowest friction. Filled PTFE sheets incorporate materials like glass fibers, carbon, bronze, or graphite to enhance specific properties. For example, glass fill improves wear resistance and stiffness, carbon fill enhances creep resistance and conductivity, while bronze fill increases thermal conductivity and load-bearing capacity. Kaxite Seals engineers can help you select the optimal grade. **Q: How do I select the correct thickness for a gasket or liner application?** **A:** Thickness selection depends on pressure, flange type, chemical exposure, and temperature. For static seals in low-pressure systems, thinner sheets (1/32" to 1/16") are often sufficient. For uneven surfaces or higher pressures, thicker sheets (1/8" to 1/4") provide better conformability and extrusion resistance. Always consult pressure-temperature ratings and consider using our technical datasheets for guidance. **Q: Can Kaxite Seals PTFE sheets be machined or fabricated?** **A:** Yes, PTFE is readily machinable using standard workshop tools. It can be cleanly cut, drilled, turned, and milled. However, due to its softness and high deformability, sharp tools and proper clamping are essential to achieve precise dimensions. Kaxite Seals also offers custom pre-cut parts and fabricated components to your exact drawings. **Q: What are the limitations of PTFE material that I should be aware of?** **A:** While exceptional in many areas, PTFE has a few limitations: it has relatively low mechanical strength and can exhibit cold flow (creep) under sustained heavy loads. It is not suitable for applications involving molten alkali metals or certain fluorine compounds at high temperatures. Its abrasion resistance in pure form is moderate, which is why filled grades are used for dynamic wear parts. **Q: Are there any special storage or handling requirements for PTFE sheets?** **A:** PTFE sheets are inert and stable, requiring no special storage conditions. They should be kept clean, dry, and away from direct heat sources. Avoid sharp objects that could scratch or indent the surface. When handling for high-purity applications, use clean gloves to prevent contamination from skin oils. **Q: How does Kaxite Seals ensure the quality and consistency of its PTFE sheets?** **A:** Kaxite Seals implements a rigorous quality control protocol from raw material sourcing to final inspection. We use only certified virgin PTFE resins. Our manufacturing process is closely monitored for sintering temperature and pressure. Every production batch undergoes testing for key parameters like density, tensile strength, and thickness uniformity, ensuring you receive a product that performs reliably batch after batch. **Q: Can PTFE sheet be used for outdoor applications exposed to sunlight and weather?** **A:** Absolutely. PTFE is highly resistant to UV radiation, ozone, and all weather conditions. It does not degrade, become brittle, or lose its properties when exposed to the elements, making it an excellent choice for outdoor seals, architectural components, and chemical venting systems. **Q: What is the lead time for ordering custom-sized or non-standard PTFE sheets from Kaxite Seals?** **A:** Standard size and thickness sheets are typically available for immediate dispatch from our inventory. For custom-cut sizes, fabricated parts, or special filled grades, lead times vary depending on the order complexity and volume. Our sales team provides accurate lead time estimates upon receiving your specifications, with a typical range of 5 to 15 working days for custom orders.
