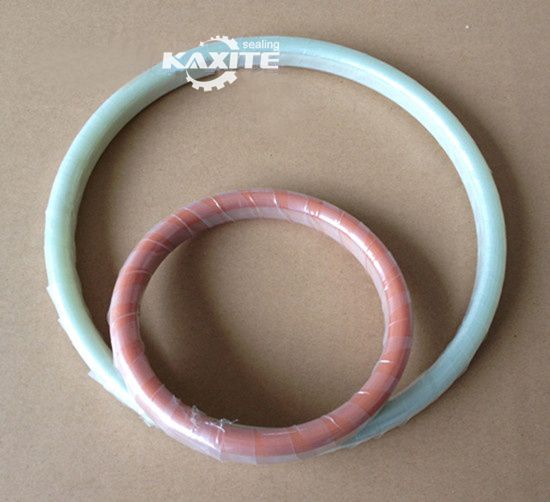

Type D Flange Insulation Gasket
Kaxite Seals' Type D Flange Insulation Gasket expertly prevents galvanic corrosion in metal piping systems, ensuring long-term reliability. This durable gasket, crafted from advanced insulating materials, offers superior electrical resistance and pressure handling, ideal for industries like chemical processing, oil and gas, and marine applications. Users experience enhanced safety, reduced maintenance, and consistent performance, eliminating costly leaks and downtime. Unlike standard options, its precision-engineered design delivers unmatched stability and ease of installation. Trust Kaxite Seals for a robust solution that safeguards your infrastructure effectively.
Send Inquiry
Product Description
|
|
|
Product name: Type D Flange Insulation Gasket |
|
|
Item: |
|
|
Details: |
|
|

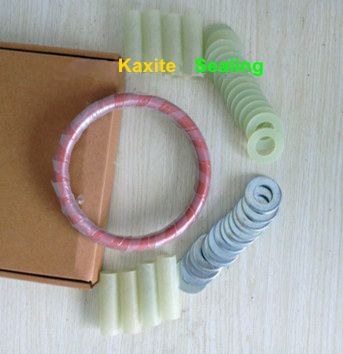

Insulation Flange Gasket Kits are used for controlling losses due to corrosion. They can be used to control stray electric currents in piping at oil, gas, water, refinery, and chemical plants, to increase the effectiveness of cathodic protection systems.
Type D insulation gaskets are available for RTJ flanges but the YZT-150 Sealing Gasket is an excellent alternative to D gaskets because the sealing element may be positioned anywhere between the I.D. of the gasket and I.D. of the ring groove.
|
|
Property
|
Plain
Phenolic |
Silicone
Glass G-7* |
Epoxy
Glass G-10 |
Epoxy
Glass G-11 |
|
Dielectric strengths,
Volts/mil |
500
|
350-400
|
550
|
550
|
|
Compressive strength,
psi |
25,000
|
40,000
|
50,000
|
50,000+
|
|
Water absorption, %
|
1.6
|
0.07
|
0.10
|
0.10
|
|
Insulating Resistance,
Meg Ohms |
40,000
|
2,500
|
200,000
|
200,000
|
|
Flexural strength, psi
|
22,500
|
27,000
|
45,000
|
43,000
|
|
Operating temp, oF
|
-65 to +220
|
-292 to +450
|
-292 to +280
|
-292 to +350
|
|
Operating temp, oC
|
-54 to +104
|
-180 to +232
|
-180 to +138
|
-180 to +177
|
* = G-7 material should not be used with hydrocarbons, not even trace amounts.
Type D Flange Insulation Gaskets are suitable for RTJ flange, they can be produced according to ASME and API flange standard.
