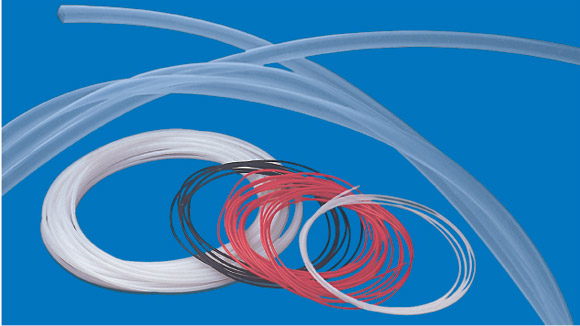

FEP Tubing

Kaxite Seals presents FEP Tubing, a flexible, chemically resistant tubing perfect for laboratory, medical, and industrial applications. With superior clarity, non-stick properties, and durability, it ensures reliable performance in critical environments. Ideal for professionals seeking precision and safety, it solves contamination and maintenance challenges, offering unmatched quality. Choose Kaxite Seals for excellence you can trust.

Send Inquiry

Product Description

[ Features ]

FEP also named F46, it manfactured by ram extruding method with FEP resin adding additive (or without additive) has realiable. properties of resistant from high or low temperature, chemical corruption electric insulation, non-stick.

[ Specifications ]

Unit mm

outside diameter	Tolerance	wall thickness	Tolerance	outside diameter	Tolerance	wall thickness	Tolerance
1	0.08	0.2	0.05	16	0.20	1.0	0.15
2	0.08	0.2	0.05	18	0.20	1.0	0.15
3	0.10	0.4	0.06	20	0.40	1.0	0.15
4	0.10	0.4	0.06	25	0.40	1.5	0.20
5	0.10	0.5	0.10	32	0.50	1.5	0.20
6	0.10	0.5	0.10	36	0.50	2.0	0.20
8	0.20	0.5	0.10	40	0.50	2.0	0.20
10	0.20	1.0	0.15	50	0.50	2.0	0.20
12	0.20	1.0	0.15	65	0.80	3.0	0.30
14	0.20	1.0	0.15	80	1.00	3.0	0.40

[ Main properties ]

Properties	Unit	Result
Properties	Unit	electricity gas	be current
Tensile strength	Mpa	14	14
Ultimate Elongation	%	175	175
Dialectric Strength 0.2mm wall 0.4mm thickness 0.5mm	MV/m	30 25 24	-- -- --

[ Applications ]

Can be long term used under the temperature from -80

- 200

.
YCSG-1 tube mainly used in various electric cable, electric wire, protecting cover, eletric elements and ray tube.
YCSG-2 tube mainly used in bad working coudition, for example, inner liner pipes for corrosive fluids and gas, heat exchange machine tube and fluids meter tube.
