Aramid Fiber Packing

Kaxite Seals presents Aramid Fiber Packing, a high-performance sealing solution ideal for demanding industrial applications. Made from durable Aramid fibers, it excels in extreme temperatures and harsh environments, offering superior resistance to wear, chemicals, and abrasion. Designed for engineers and plant operators, it ensures reliable sealing in pumps, valves, and machinery, reducing downtime and maintenance costs. Experience peace of mind with enhanced safety and efficiency. Unlike conventional packings, Kaxite's Aramid Fiber Packing combines lightweight flexibility with exceptional strength, providing a long-lasting, cost-effective alternative. Discover a smarter way to seal today!

Send Inquiry

Product Description

Aramid Fiber Packing

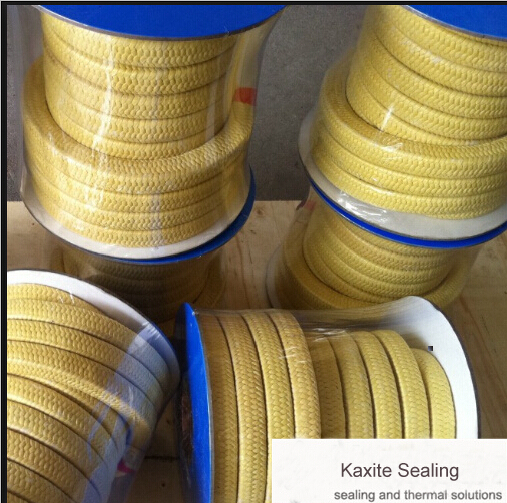

Aramid Fiber Packing Aramid Fiber Packing is braided from high quality Dupont Aramid/Kevlar fiber with PTFE Impregnation and lubricant additive. Extremely hard wearing. It shows good chemical resistance, high elasticity and very low cold flow. It is wear resistant but may damage the shaft if not used properly. A minimum shaft hardness of 60HRC is therefore recommended. Compared with other kinds of packing, it can resist more severe media and higher pressure. The packing is also lubricated with a silicone-based compound for quick and easy break-in.

APPLICATION:

It is a universal packing which can be used for pumps in all types of industry such as chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power stations etc. It is also a durable packing able to withstand granular and abrasive applications, it is recommended for serve in superheated steam, solvents, liquefied gases, sugar syrups and other abrasive fluids.
For hot water applications it can be used un-cooled up to 160^oC.
It can be used as stand-alone packing also combined with others as anti-extrusion ring.

Aramid Fiber Packing Technical Data
Pressure	8-25MPa
Temperature	-100-280^oC
PH Range	2-13
Linear speed	0-15m/s
Density	1.3-1.4g/cm3
Section Size	33mm-100100mm
Package	5kgs or 10kgs per reel in a box/or as the requirement of the client
