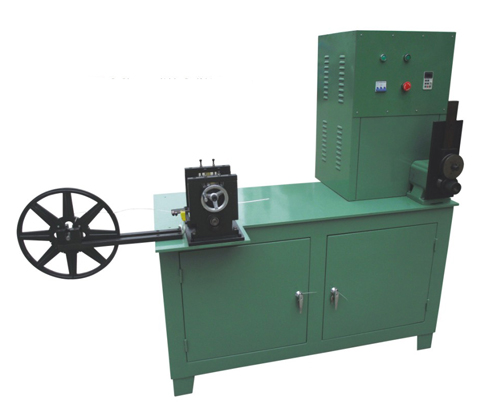

Pre-Shaping Machine For SWG SS Stri
Pre-shape the flat spiral wound gasket SS strip (hoop) into V or W shape before winding.
Description
This machine is used to pre-shape
the flat spiral wound gasket SS strip (hoop) into V or W shape before winding
them. Preshape SS thickness 0.1-0.3mm, SS width 2.5-7.2mm.
| Specification as following: | |
| STYLE | KXT E1240 Pre-shaping machine for SWG SS strip |
| Preshaping SS thickness | 0.1--0.3mm |
| Pre-shaping SS width | 2.5--7.2mm (Standard machine package include on size of blade, other size for option: 2.5V 3.2V 4.5V 6.4V 7.2V 2.5W 3.2W 4.5W 6.4W 7.2W) |
| Total power | 1.5kw |
| Spindle motor power | 0.75kw |
| Frequency Converter | 2.2G |
| Power supply voltage | 380V/220V as request,3phases |
| linear speed | 0--12m/s |
| Machine measurement | 1800*820*1600mm |
| Machine net weight | 300kg |
