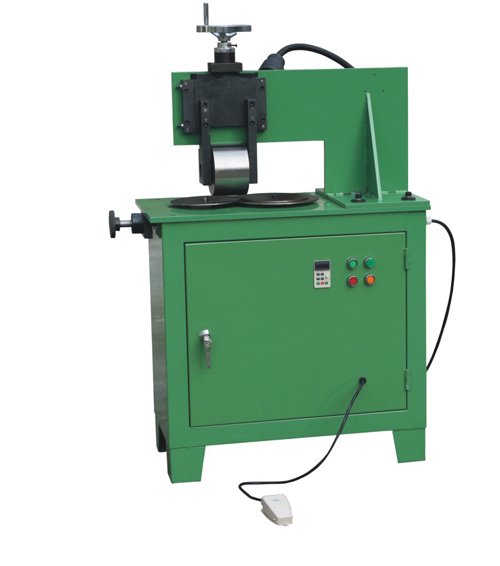

Eyelets Wrapping Machine
used to eyelet the reinforced gasket inner and outer diameter with SS strip
This machine is used to eyelet the reinforced gasket inner and outer diameter
with SS strip. Need to use with KXT E1530 SS strip moulding machine.
Working
range: Diameter 60mm to 4000mm. Width:
95mm, Thickness: 2-8mm
| Specification as following: | |
| STYLE | KXT E1540 Eyelet machine |
| Eyelet Gasket thickness | 2-8mm (Standard machine package include one set model for 3mm, other size need extra order |
| Eyelet Gasket width |
95mm
|
| Maximum gasket OD | 4000mm |
| Minimum gasket ID | 60mm |
| Total power | 0.75kw |
| Spindle motor power | 0.4kw |
| Power supply voltage | 380V/220V as request, 3phases |
| Frequency Converter | 0.75G |
| linear speed | 0---120mm/s |
| Machine measurement | 950*450*1300mm |
| Machine net weight | 220 kg |
