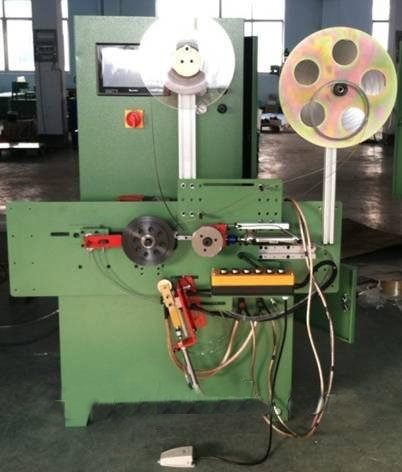

Automatic Spiral Wound Gasket Winding Machine
our newest design, it has the best automatic function all over China. The automatic functions of this machine include PLC size controlling, with SS strip forming roller, Automatic spot welding.
Automatic spiral wound gasket Winding machine Details
|
STYLE |
KXT E500C-V |
KXT E500C-VF |
|
Automatic
winding machine for SWG (newest
design) |
||
|
Working
mode |
Both
Manual and Automatic mode |
|
|
SS
strip |
Pre-formed SS strip in
pancake |
both
pre-formed SS strip in pancake or 20-25kgs spool of flat strip |
|
Producing
ability |
Standard
package including models for 1"-10" 150# SWG with or without inner ring, other
size model on request with extra charge |
|
|
SWG
thickness |
4.5mm
(also suitable for 3.2 and 6.4mm after changing roller parts, V shape winding or
W shape winding for option) |
|
|
Automatic
function |
PLC
size controlling, |
PLC
size controlling, Automatic spot welding,with SS strip forming roller, |
|
Maximum
gasket OD |
500mm |
|
|
Minimum
gasket ID |
25mm |
|
|
Gasket
OD tolerance |
±0.2mm |
|
|
Spindle
speed |
0--300rpm |
|
|
Total
power |
8kw |
|
|
Spindle
motor power |
1.5kw |
|
|
Welder
power |
6kw |
|
|
Power
supply voltage |
380V
or 220V for option, 3 phases |
|
|
AIR
COMPRESSER |
0.6-0.8
MPA |
|
|
PLC |
xinjie |
|
|
Production
rate |
20--30s /pc
(for ANSI 6" 150LB) |
|
|
Machine
measurement |
1400*1050*1650mm |
|
|
Machine
net weight |
400kg |
|
