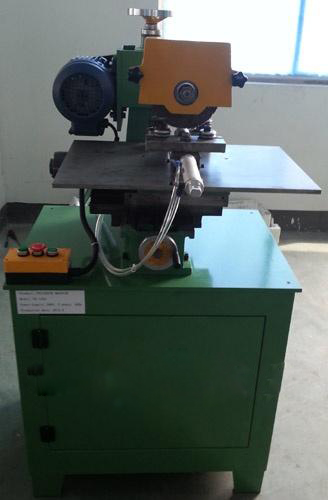

Polishing Machine For SWG Ring
This machine was designed to polishing the surface of the spiral wound gasket inner and outer ring
Description
| Specification as following:： | |
| STYLE | KXT E1250 Polishing Machine for SWG ring |
| Polising ring thickness | 2-4mm |
| Maximum ring OD | 3000mm |
| Minimum ring ID | 120mm |
| Total power | 2.2kw |
| Spindle motor power | 1.1kw |
| Feed moter power | 0.04kw |
| Power supply | 380V/220V for option, 3 phases |
| linear speed | 0-100 mm/s |
| Air compressor | 0.6--0.8 Mpa |
| Measurement | 840 X 960 X 1560MM |
| Machine net weight | 250kg |
