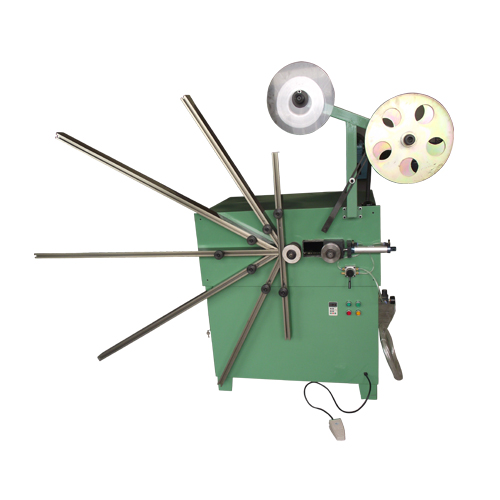

Manual Vertical Big Size Winding Machine For SWG
Very easy to use. Suitable for SWG with or without inner ring, diameter from 200mm to 1600mm;
Description
| Specification as following: | |
| STYLE | KXT E1200 Vertical big size winding machine |
| Producing ability | spiral wound gasket with or without inner ring |
| SWG thickness | 4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding) |
| Maximum gasket OD | 1600mm |
| Minimum gasket ID | 200mm |
| Gasket OD tolerance | ±0.8mm |
| Total power | 2.2kw |
| Spindle motor power | 1.5kw |
| Frequency Converter | 2.2G |
| Power supply voltage | 380V/220V for option, 3 phases |
| linear speed | 0-800mm/s |
| Air compressor | 0.6-0.8 MPA |
| Machine measurement | 2200*850*1800mm |
| Machine net weight | 220 kg |
