Polyimide Article

Kaxite is one of the leading China Polyimide Article suppliers and manufacturers, and with productive factory, welcome to wholesale Polyimide Article products from us.


Send Inquiry


Description
[ Features ]

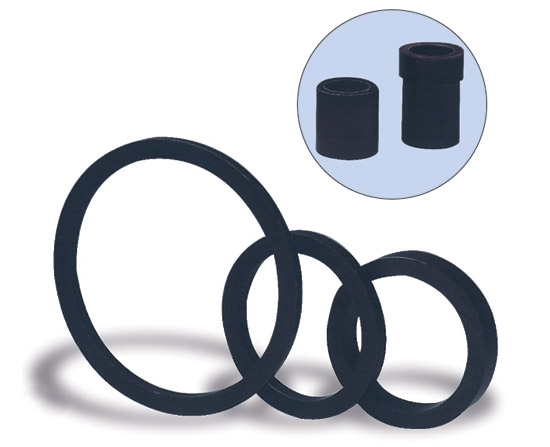

Polyimide article is a solid mass with the colour of translucent or opaque amber, or deep brown. It has good mechanical intensity and possesses the superior properties against high temperature(working temperature 250)and radiation. Polyimide article can be made into thin film,srengthened plastic moulding article, high-vacuum selflubricating bearing of resistance to high temperature, parts of electric apparatus used in high temperature, articles of resistance to radiation and so on.It can also be used as dielectric materials,such as plug,socket, skeleton and wire rack of different electrical applicance,etc.Polyimide added in with a moderate amount of polytetrafluoroethylene(PTFE)and graphite can be used as oilless lubricating material used in high-speed compressor,such as piston ring sealing ring,axle rim,etc.

[ Specifications ]

(outside diameter )X(Inside diameter )XHigh(M/M)

30X19X70 36X24X50
57X45X50
66X55X50
100X83X50 120X97X50
50X38X50
66X45X50
70X45X50 72X60X50
180X140X50
57X40X50
66X51X50
84X70X70 81X72X40

[ Features ]
Proportion
1.36-1.37
heat setting temperature
(18.5kg/cm2) 232
bending strength (bending point)
1660kg/cm2
crush strength
>155kg•cm/cm2
friction factor(noumenon)
0.24
hardness(HB)
23
PV value
20-30m•kg/mm2•S
